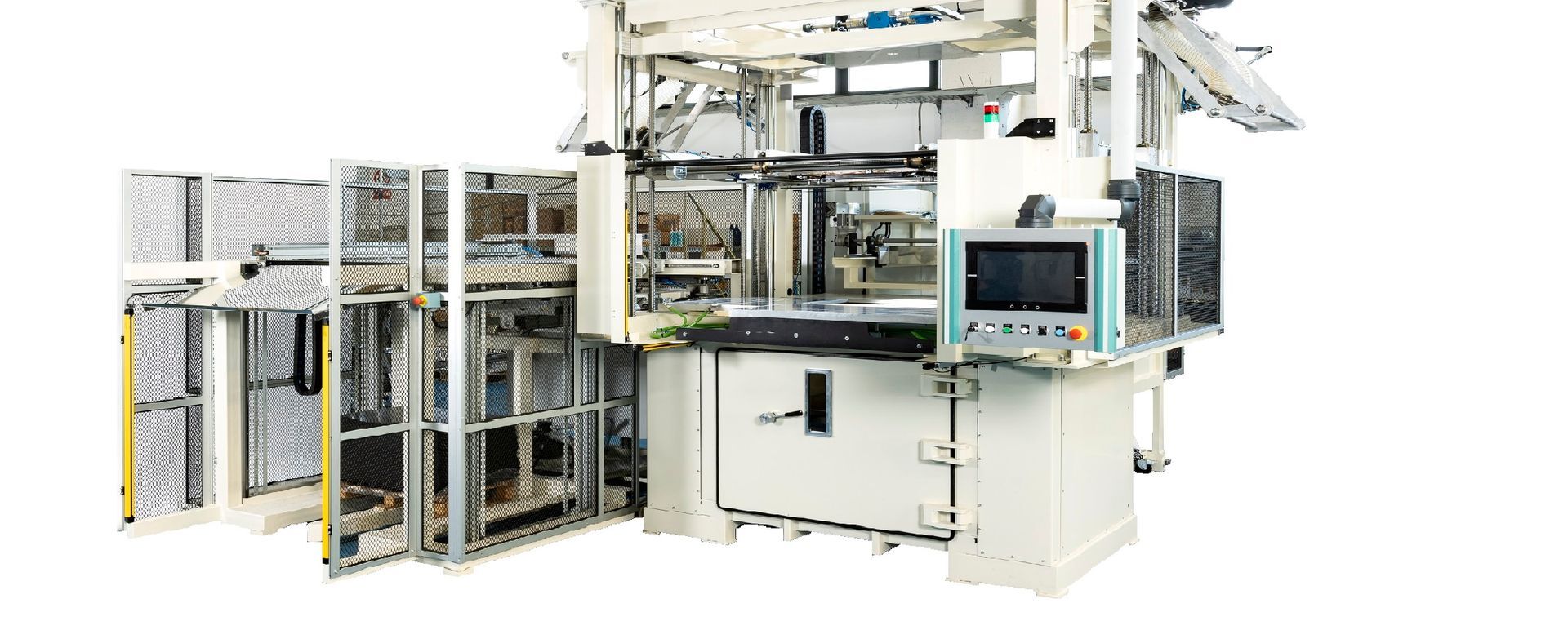

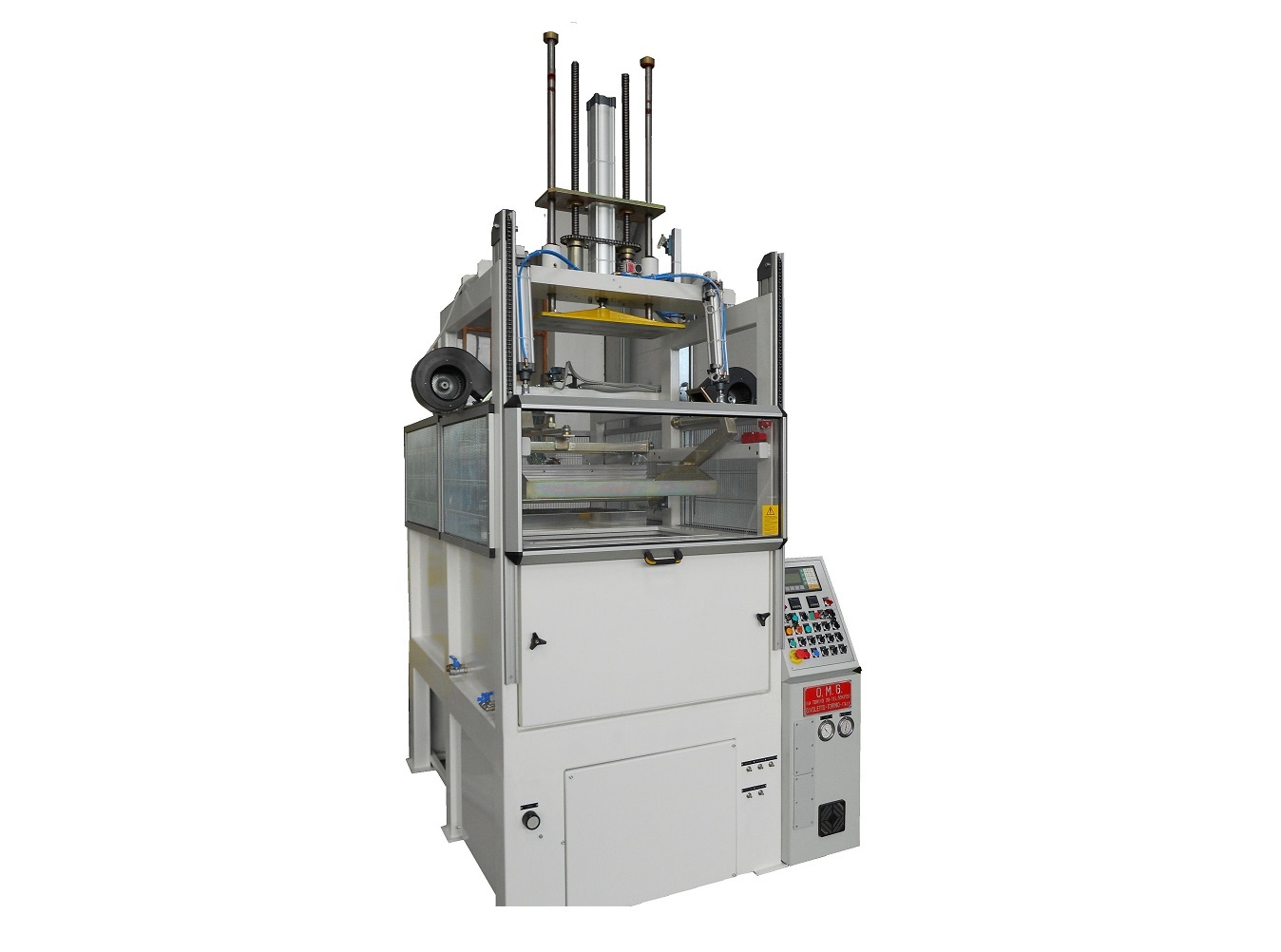

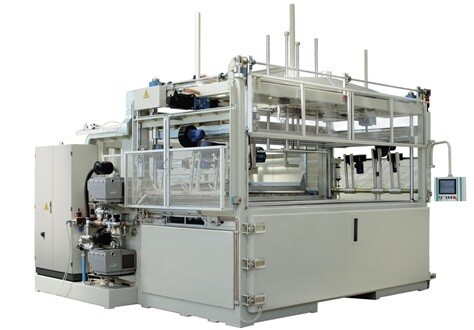

This model of vacuum thermoforming machine is ideal for the production of thermoformed items starting from thermoplastic sheets. The machine can be supplied with manual or automatic sheet loading/unloading. It can also be supplied with preheating ovens. The movements can be implemented pneumatically, hydraulically, or with servomotors.

Configuration:

  • Loading and Unloading device
  • Pre-heater
  • Thermoforming unit
  • Blow Box and Mould table
  • Clamping frames
  • Heating panels
  • Plug Assist and Cooling system
  • Control system

The advantages

  • Electrical configuration model with servomotors: greater reliability, high productivity, constant speed, higher thermoformed, quality, adjustable depth mould.
  • Fast tool locks.
  • Possibility of motorized reduction of the working frame.
  • Automatic sheet loader directly from pallets.
  • Different heating configurations also for Energy Saving.
  • High thicknesses.
  • Fast setup.
  • Low maintenance.



The futures

  • Manual or automatic loading by means of a special device of the sheet from the store or directly from the pallet at the customer’s choice.
  • Manual or automatic unloading of the thermoformed part by means of device and transport outside the machine.
  • Heating with single or double ceramic panel or energy saving with single regulation of the resistances / zones.
  • Pyrometers both for sheet temperature control and for fan cooling control.
  • Tool table moved pneumatically, hydraulically or by servomotor.
  • Sheet clamping operated pneumatically, hydraulically or by servomotor.
  • Plug assist moved pneumatically, hydraulically or by servomotor.
  • Servo controlled valves on request for vacuum, demoulding, pre-blowing, material floating air available.
  • Material cooling with fans with the possibility of using water spray (available) to speed up cooling.
  • Cycle management through an industrial interactive screen which makes it easier for the operator to adjust and memorize the working parameters.
  • Telediagnostics via Internet: thanks to the possibility of directly communicating with the system at a distance, O.M.G. technicians always at the customer’s side in managing the system.





Models357096150192200
Max working area (large*long) (mm)*750×5001000×7001200×8001500×10001600×12002000×1000
Max. tool height (mm)*150500550550600600
Models300375416450576600
Max working area (large*long) (mm)*2500×15002500×15002600×16003000×15003600×16003000×2000
Max. tool height (mm)*600600900900900900
On Request

Semiautomatic and Automatic machines for sheet (Heavy Gauge) ASV series

OMG

Sheet-processing

New

Not in Production
approx. 4-6 months
Contact us
