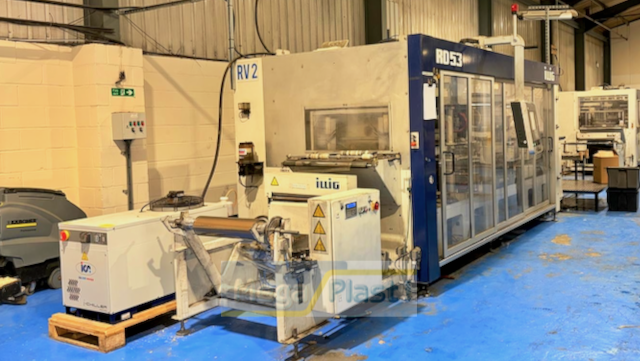

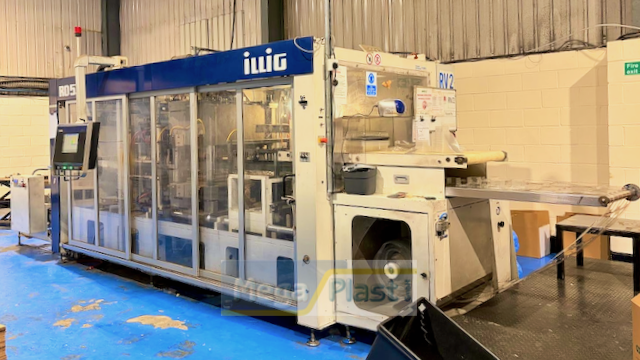

ILLIG RD 53D, Year 2016
Automatic roll-fed separate forming/punching
In Production
ILLIG
2016
year of Manufacture
Flawless Condition
Immediately
24884
hours
Details
Automatic pressure forming machine

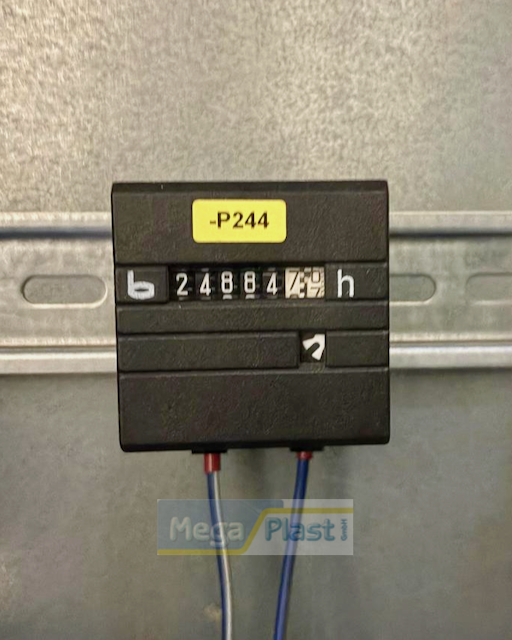

- Working hours: Only 24.884,70

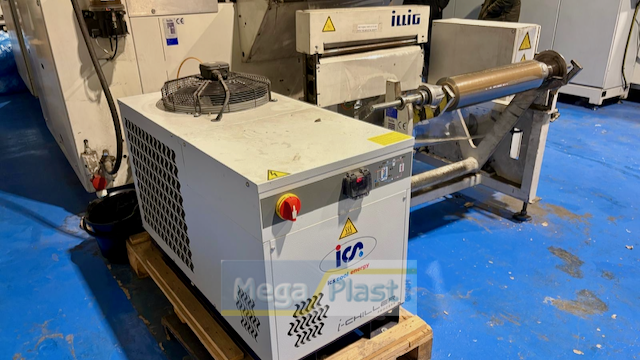

- Incl. Chiller from ICS, from year 2024
Technical specifications
Forming area max. 500 x 365 mm
Mold width between material transport max. 524 mm
Mold length in feed direction max. 390 mm
Mold height on upper table max. 130 mm
Mold height on lower table max. 75 mm
Material width max. 550 mm
Index length max. 395 mm
Part height above material level max. 100 mm
Part height below material level max. 40 mm
Forming pressure max. 3 bar
Cycle speed with process optimization max. 45 1/min.
Machine in working order.
In Store
ILLIG RD 53D, Year 2016
ILLIG
Automatic roll-fed separate forming/punching
2016
year of manufacture
Flawless Condition
In Production
24884
hours
Immediately
