In Store

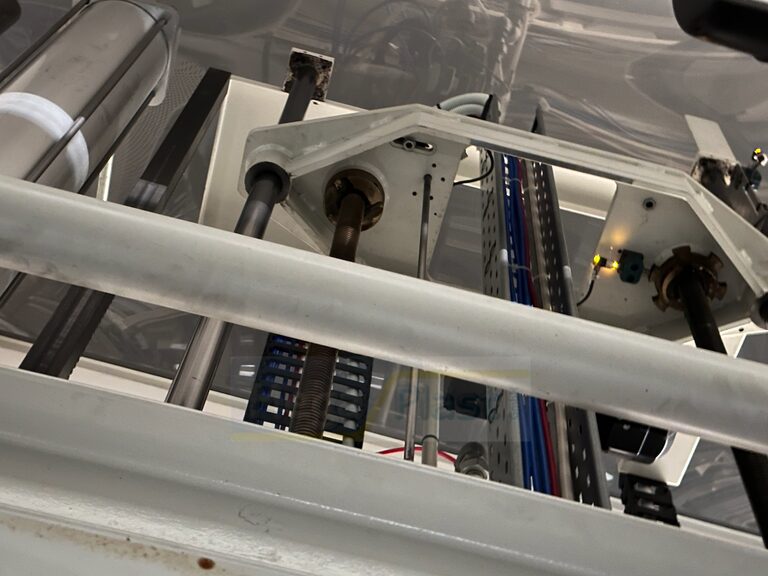

ILLIG UA 225 4G

Sheet-processing

In Production

ILLIG

2008

year of Manufacture

Excellent Condition

Details

Vacuum Forming Machine with:

Bush vacuum pump Typ: RA 0255 D 561 CUXX
Servo Plug Assist
Clamping frame lifted parallel
Servo Form table
Siemens S7 control
8 Cooling fans

Technical specifications

Max. Plate size: 2250×1250 mm
Max. Forming area: 2200×1200 mm

Max. Thickness of the panel: 10 mm
Max. Drawing height: 700 mm
Max. Tool height: 860 mm

Only 2.640 Working hours

The machine has an automatic changeover function, upper punch with pneumatic drive, mould table with pneumatic drive and position storage.
Electric heating, individual heating pattern is stored, energy-saving mode during work breaks by switching off the vacuum pump and lowering the set temperature of the radiant heaters.

Temperature control connection for top and bottom Under-tension frame (max. 140 °C);
Heating molding machine variants:- 8-position switch
Forming table with pneumatic drive, Forming table speed digital adjustable (7 levels);
Top table
– with pneumatic drive;
– Synchronization device for asymmetrical Burden;
– automatic top table tool clamping
– automatic conversion
– Speed digitally adjustable (7-stage via valve cascade);
– Top table can be used as a demoulding aid
8-way cooling fan
Additional double fan in the front center (1 motor with fan mounted on both sides without nozzle),
Air shower cooling – connection for upper clamping frame;

Include this complete set of Frames. All frames with substructure and base plate. Some with cooling possible valued in approx 40.000 euros
1740 x 700
1960 x 1060
2040 x 735
1270 x 960
860 x 860
2260 x 1070
1720 x 350

Include Upper punching Unit heating system JAKO
