material width max. 910mm
material thickness max. 1.5mm
connected load heating rolls 25.2 kW
connected load convection heater 7.5 kW
total connected load 33,5 kW
material unwinding speed max. 17m/min
material unwinding speed min. 2m/mín
temperature heating rolls max. 140°C
temperature convection heater max. 140°C

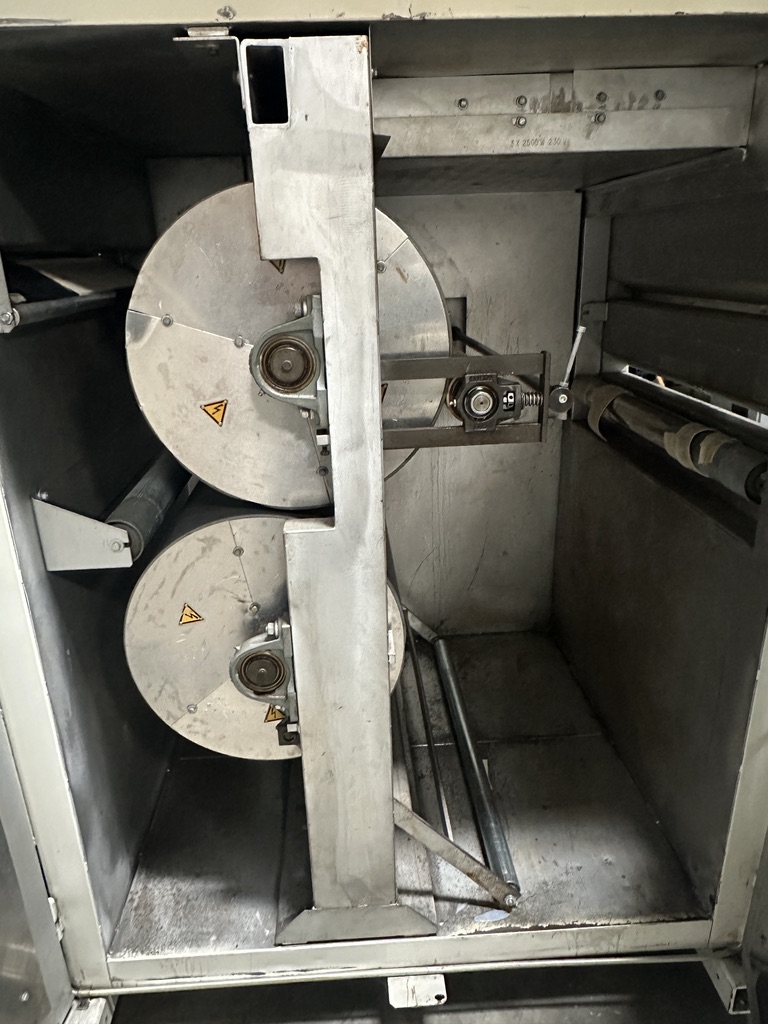

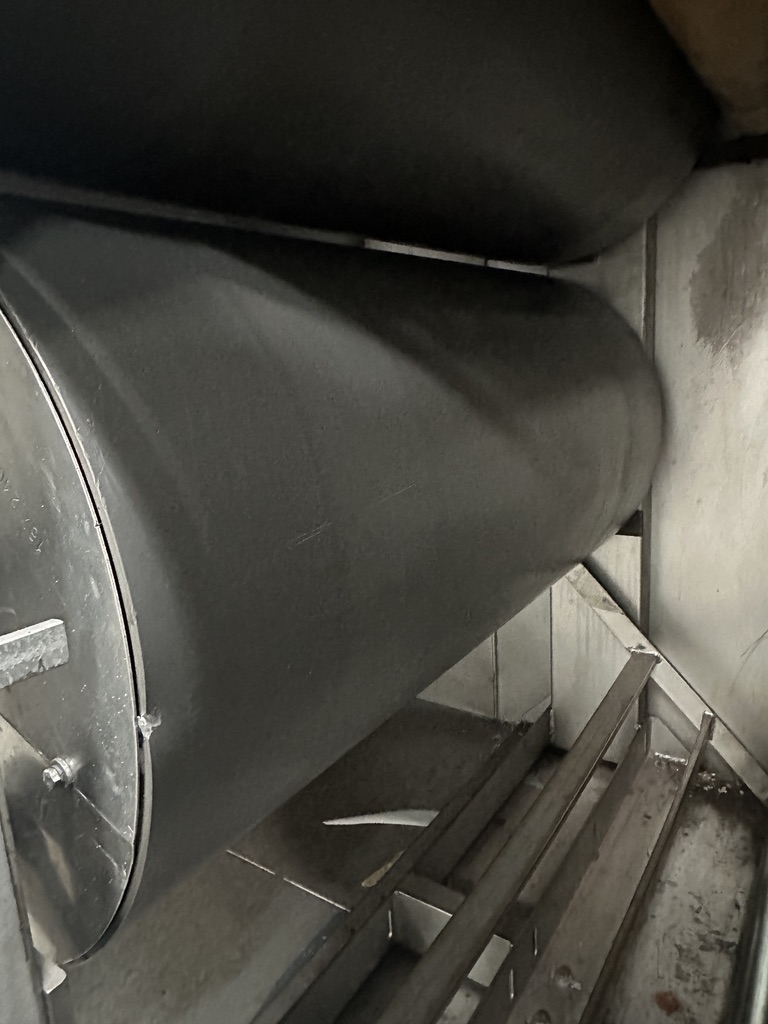

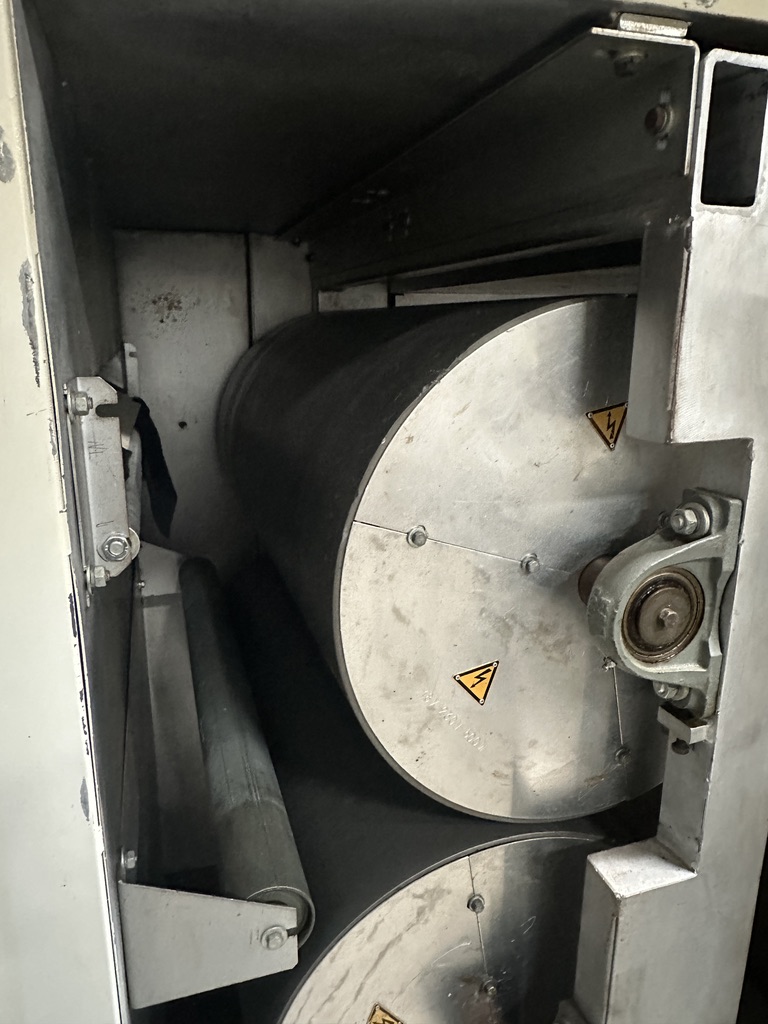

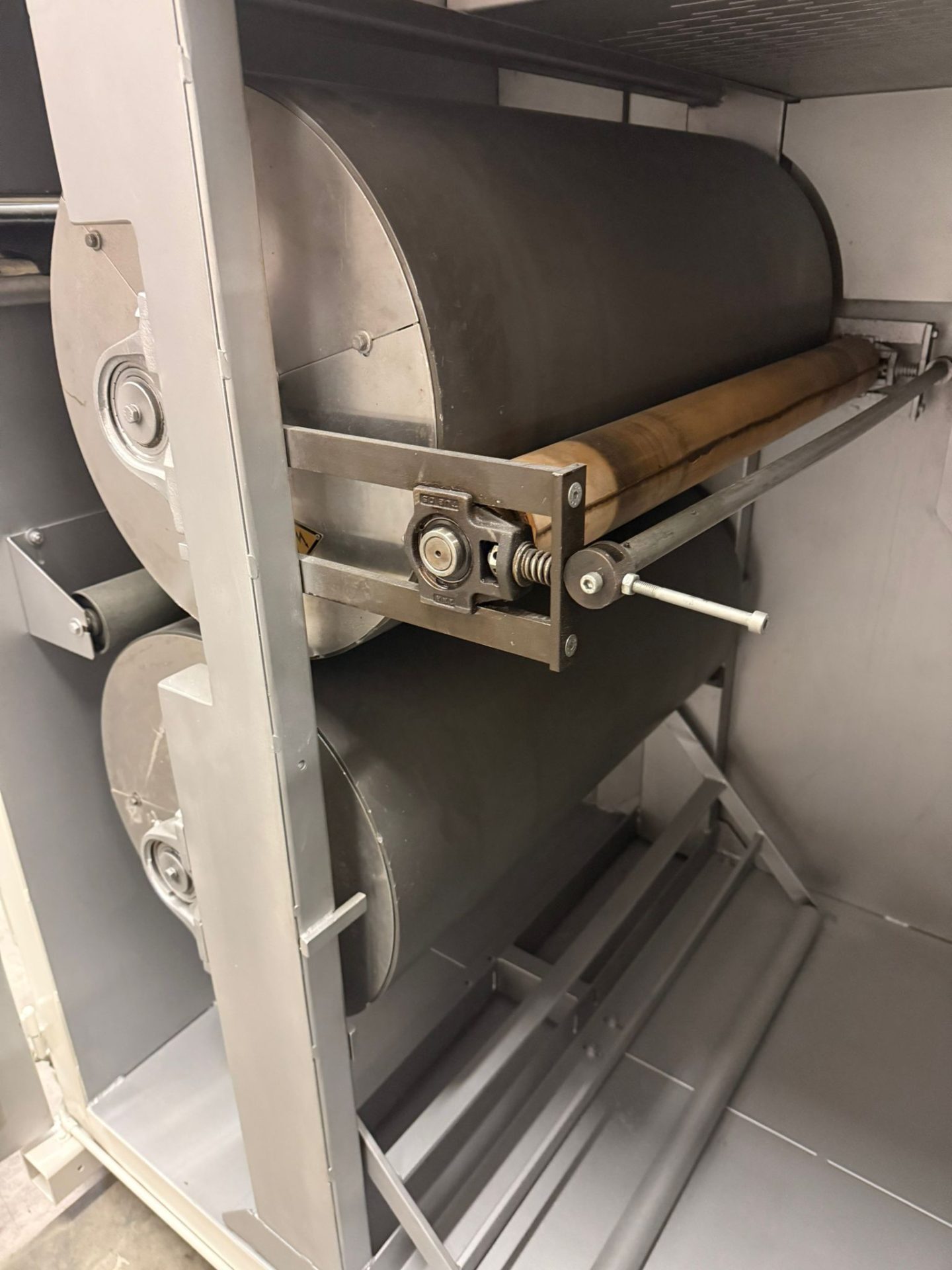

diameter of heating rolls 500mm

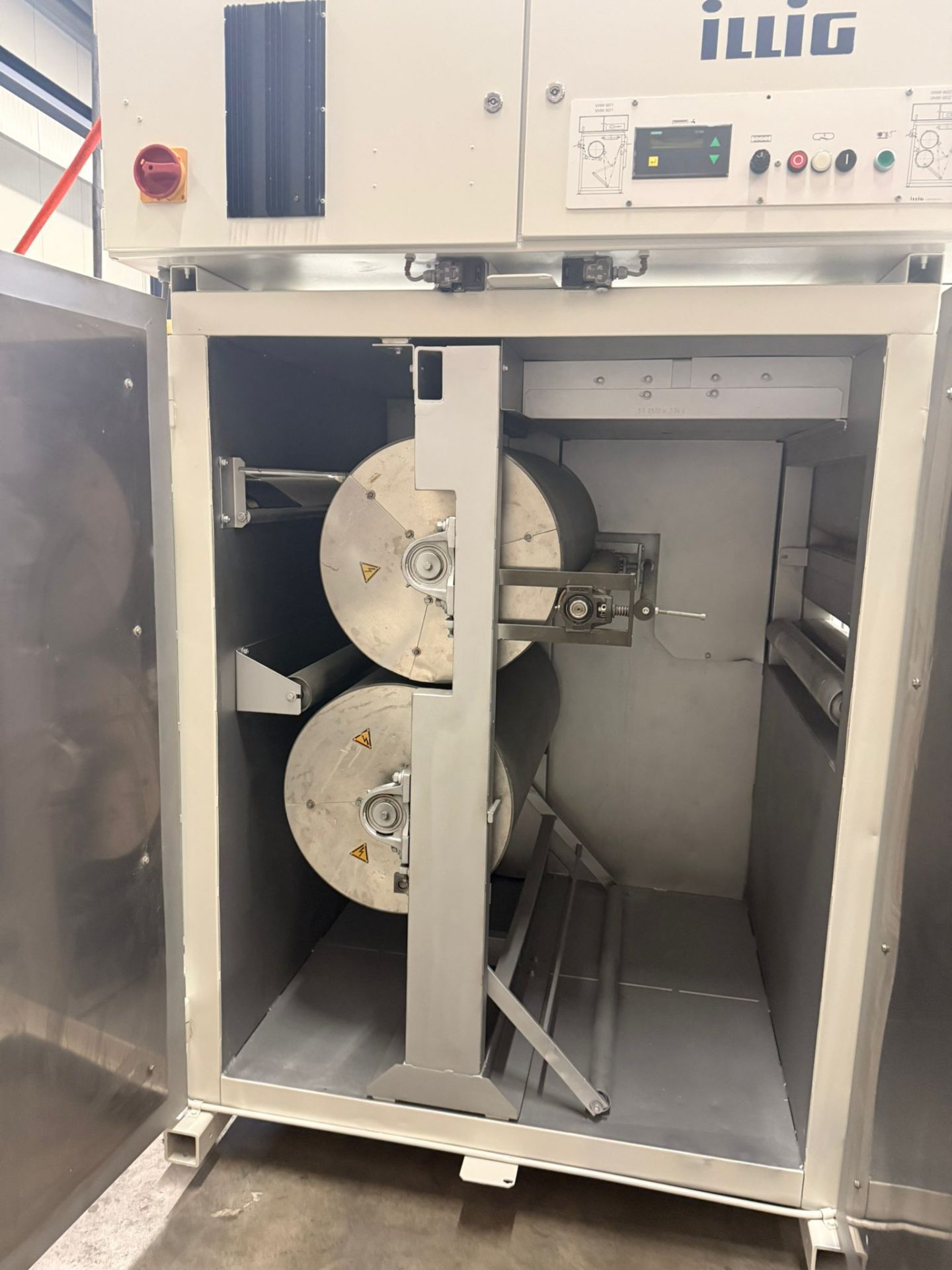

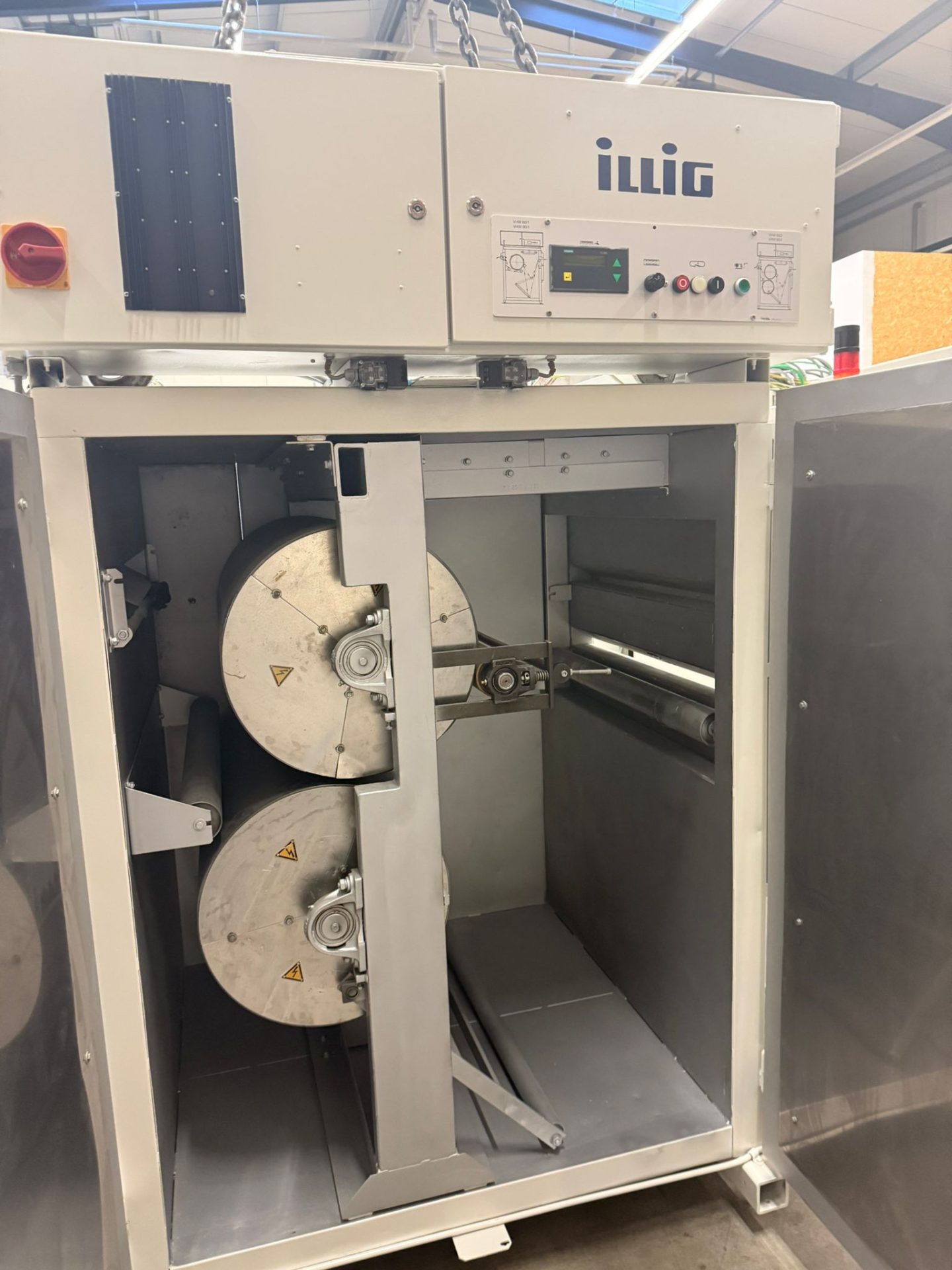

number of heating rolls 2 pieces
material loop 540 degrees
material unwinding length/cycle max. 700mm
material discharging height max. 1465mm
material discharging height min. 1050mm
weight1 200kg
total length 2040mm
total length incl. heat tunnel 2665mm
total width 1550mm
height 2300mm
height incl. control cabinet cooling (option) 2640mm Subject to modification.
Maximale Materialbreite: 910 mm
Maximale Materialdicke: 1,5 mm
Anschlussleistung Heizwalzen: 25,2 kW
Anschlussleistung Konvektionsheizung: 7,5 kW
Gesamtanschlussleistung: 33,5 kW
Maximale Abwickelgeschwindigkeit: 17 m/min
Minimale Abwickelgeschwindigkeit: 2 m/min
Maximale Temperatur der Heizwalzen: 140 °C
Maximale Temperatur der Konvektionsheizung: 140 °C
Durchmesser der Heizwalzen: 500 mm
Anzahl der Heizwalzen: 2 Stück
Materialführung (Umlenkung): 540 Grad
Maximale Abwickellänge pro Zyklus: 700 mm
Maximale Ausgabehöhe des Materials: 1465 mm
Minimale Ausgabehöhe des Materials: 1050 mm
Gewicht: 1200 kg
Gesamtlänge: 2040 mm
Gesamtlänge inkl. Wärmetunnel: 2665 mm
Gesamtbreite: 1550 mm
Höhe: 2300 mm
Höhe inkl. Schaltschrankkühlung (optional): 2640 mm
