Description
Complete Co-Extrusion Bandera INLINE with OMV thermoforming machine for the production of plates
consisting of:

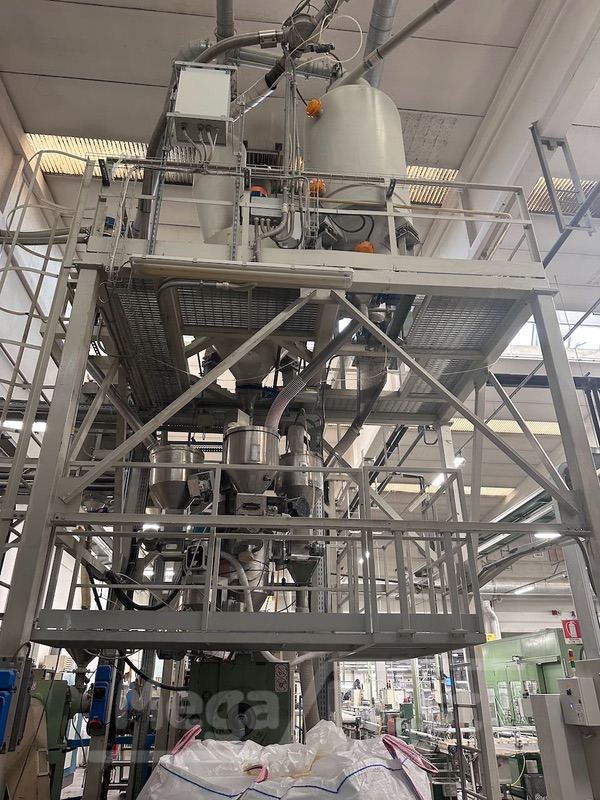

- Dosing unit from Engiplast. Gravimetric. With this system the line is receiving the material directly from Silo’s and it is possible to get other materials from Big-Bag as well with screw from side silo. The gravometric system can get 4 different materials. Before the final material comes on extruder, is moving by a Engiplast system which keep the pressure directly on the screw of extruder stabilize. In this way the extruder will never run without material and control the pressure on the screw.
- Main Extruder Bandera (No. 17183, year 1997, Blasia 220, GR-XP 150 with The Dirve of from ABB type DMG 225S with 440 V, 521 A, and 213 kW compelte overhaued in 02.08.2022. Gear is from Flender Typ KS 50, i=29:1. Screw diameter 120 mm and L/D 33. 5 air blowing cooling zones and heating zones. BT Plast Screen Changer hydraulic and automatic with pump.
- Co-Extrusion Bandera (No. 17188, year 1997) Blasia 220, GR-XP 150, with the drive on is ABB Type DMP 160-4M, 52 kW, 460V, 125,2A. Screw diameter 60 mm. BT Plast Screen Changer hydraulic and automatic with pump.
- Maag Melt pump
- Feed Box for A-B-A system
- Flat Flex Lip Die 1400 mm
- OMV Thermoforming machine included with calander and Tool manufacture from company Thermostampi
- 4x Chilling units for calander and tool
- DM Pack packaging unit and from Tecno Pack to packaging the plates in foil and with SmartDateX40 markek-imaje to print on the PE packaged pieces the QS code.
- Web-Grinder TRIA type: 1200/TR-NX, year 1997 and M.Nr. 33.4739.97 with blower and Silo to return the flakes directly into the mail Extruder
- Control panel with Siemens S5, SEW Frequency control, ABB Drives.
