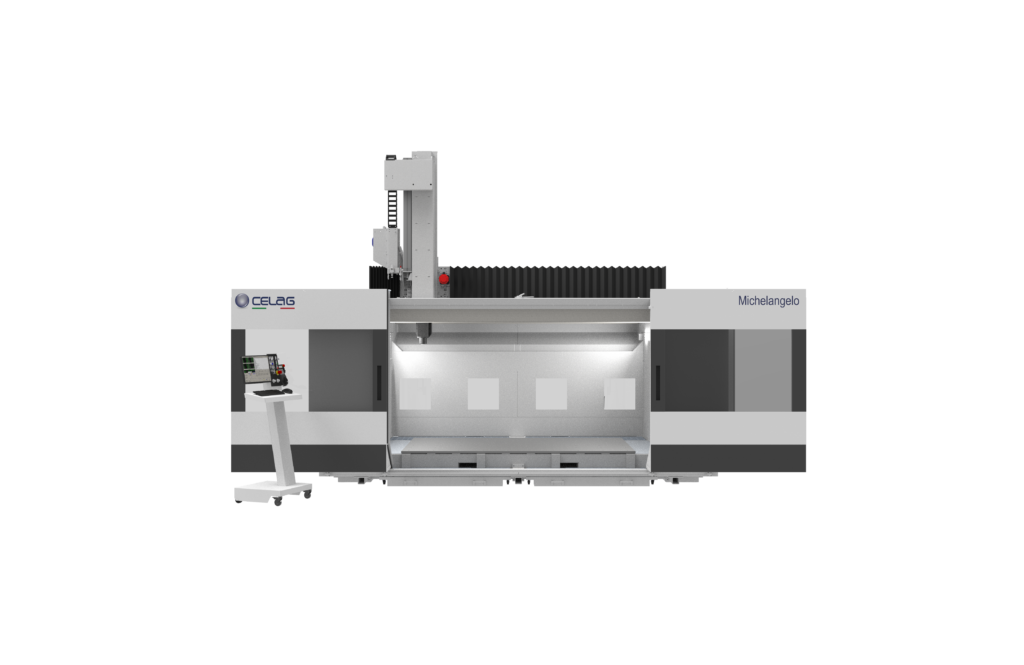

CELAG Michelangelo HF

Made with a monolithic structure to dampen vibration, it is built to operate at
high speed on advanced materials and the most complex three-dimensional
shapes.
Michelangelo HF performs applications in many sectors, from moulds and
pattern tooling to complete machined components for Aerospace, Automotive,
Motorsport, Marine and many more industries looking for optimised
manufacturing capability
A compact and rigid design with a large machining capacity together with high
precision and reliability make it the premium choice for efficiency and flexibility
offering the highest quality 5 axis machine technology

‍

TECHNICAL DATA FT:

ELECTRO-SPINDLES – Power 11/13 kW , Power 15/18 kW , Power 22/25 kW

AXIS RANGE – X = 2.900mm , Y = 1.740mm , Z = 1.200mm , A = ± 120 ° , C = ± 360 °

RAPID – X-Y-Z = 80 m/min , B/C = 75 °/sec

TOOL STATION – 8 position travelling linear tool station , 16 position travelling linear tool station , 24 position travelling linear tool station , 16 position rotating carousel
