Description

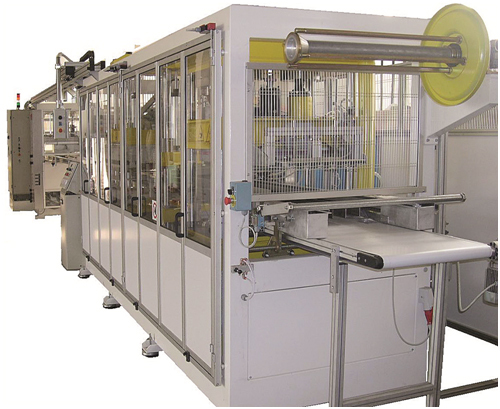

At our packaging machines are including all lines where the final packages are in a close thermoplastic container whit the products inside. The process starts from a thermoplastic roll of material (usually made of PVC or PETG) and finishing as a complete package.
The advantages
- Working only vacuum and/or vacuum and air pressure
- Forming Press in diagonal or 180° swingable for a quick tool change.
- Movement system: done by servomotors or pneumatics for a greater reliability, higher productivity and quality, constant speed and to facilitate the mold depth positioning.
- Fast tool locks.
- Operator safety zone for feeding parts in the automatic cycle.
- Loading parts by robot with vacuum cups in automatic mode.
- Introducing publicity pamphlet via automatic systems.
- Labeling inline can be supplied.
- Welding by high frequency or contact plate.
- Punching station before cutting press for european hole.
- Stacking downward under conveyor.
The features
- Unwind auto-lifting roll trolley system for a quick and simple setup.
- Film index with double pin chain driven by servomotor. Optional offset system option to work with printed film.
- Pre-heat system that allows to heat the two lateral edges of the material to accommodate thicker and harder material production capabilities.
- Double heating platen system with individual zone control, to control every part of the heating process.
- Independents forming station table movements actuated by servomotors.
- Plug assist or third motion system on both forming tables control individually by servomotors for a better material distribution.
- Swingable or diagonal forming station for quick mold change, easier and faster maintenance schedule.
- Inline welding station with hot plates and/or high frequency with practical roll closing support.
- Punching press can be supplied for European hole trim with pneumatic or servomotors activation.
- Optional labeling machine for labels with adhesive.
- Four colons trim press with tables driven by toggles and servomotors or hydraulic multipliers.
- Down stacking Output of products by driven conveyor.
-
- Stations positions controlled by actuators and encoders.
- Scrap wrapping device with constant tension and safety clutch. Extraction is made by pneumatic system.
- All adjustments are made from the touchscreen for easier and faster parameters changes.
- Color touch screen to make parameter adjustments and supervise the thermoforming process.
- Recipe memory system to do faster tool changeover. Recall or save parameters in a matter of a few seconds.
- Compact flash card memory backup.
- Internet-ready to allow our technicians to diagnose or supervise any aspect of the system.
