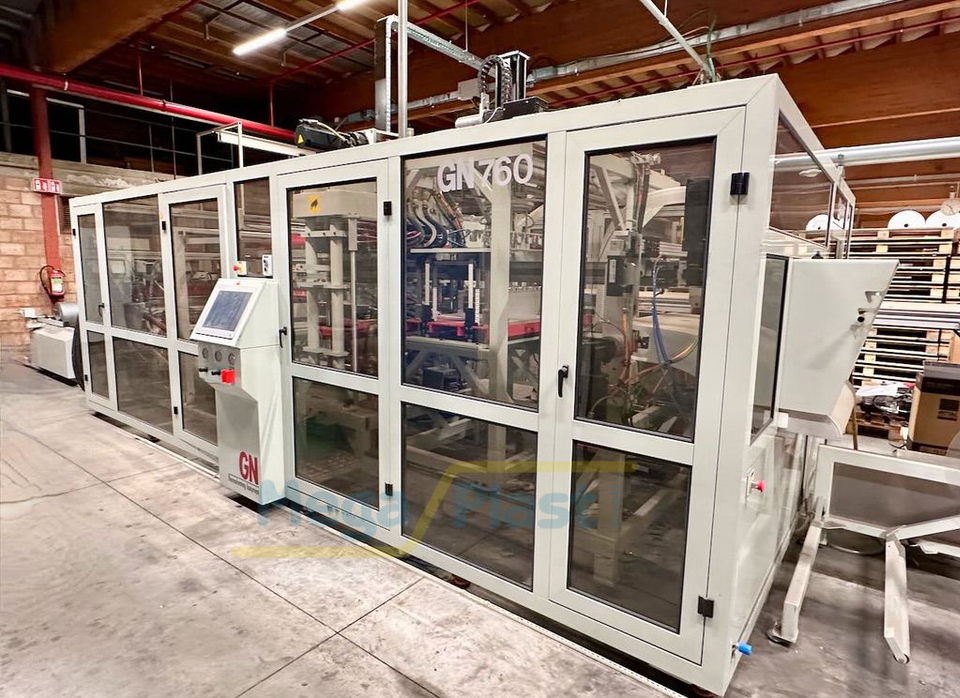

GN 760

The GN Thermoformer is exclusively intended to convert plastic sheets into products with specific shape. The heated plastic is forced into a negative mould, using a system with air and vacuum pressure. The type and thickness of plastic sheets that can be used in this machine are listed in this section:

‍

Forming area – max. 762 x 534 mm

Drawing depth – max. 125 mm below sheet line ( neg. )

Drawing depth – max. 15. mm above sheet line ( pos. )

Diameter material – max. 1000 mm

Material thickness – 0,25 to 1,50 mm

Sheet width – min. 428 mm

Sheet width – max. 815 mm

Knife length – 8500 mm for APET

Knife length – 9525 mm for other theme holding materials

Approx. air consumption – 4000 liter/min.

Air pressure – 6,2 to 9,6 bar
