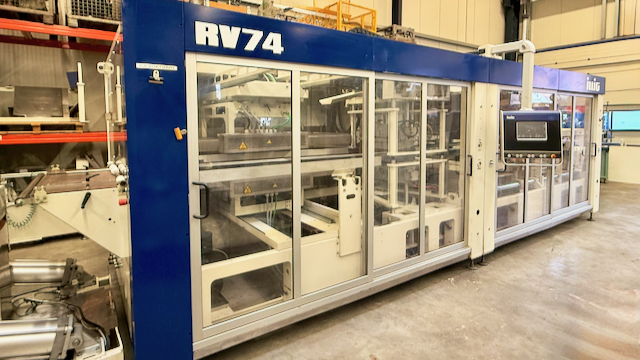

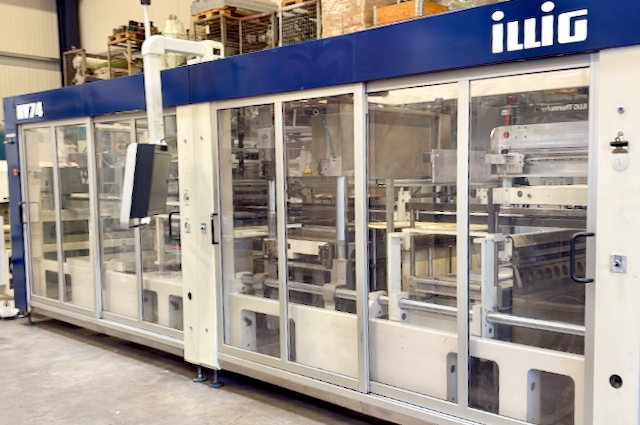

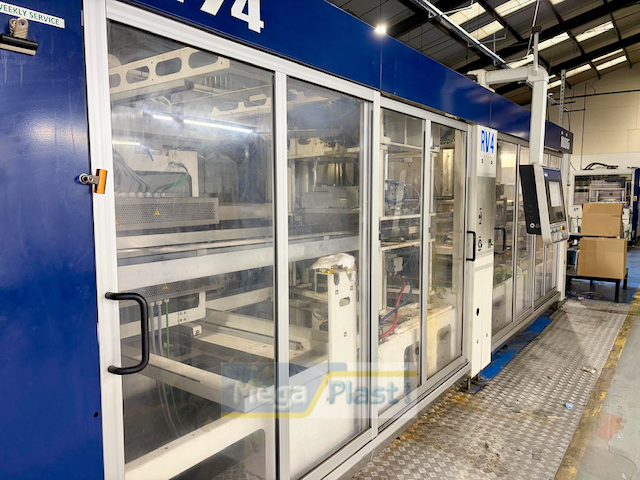

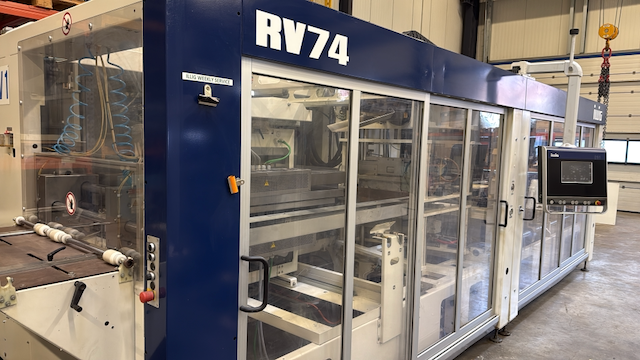

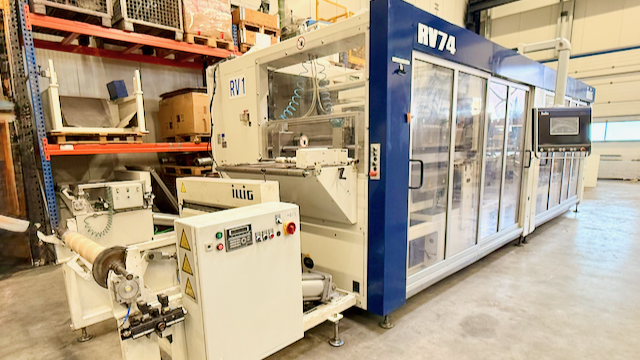

ILLIG RV 74D, Year 2016

Name: ILLIG RV 74D, Year 2016
Brand: ILLIG
SKU: M-15380
Availability: InStock

Year: 2016

Available

Technical Specifications

Ref. NoM-15380

BrandILLIG

SubcategoryRoll automatons forming and punching separately

ConditionExcellent Condition

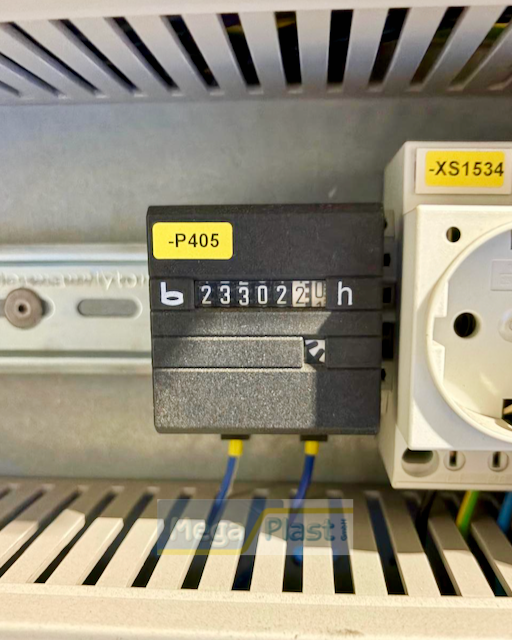

Hours23300

DeliveryImmediately

Technical details
Forming area	max. 704 x 530 mm
Mold width between material transport	max. 724 mm
Mold length in feed direction	max. 554 mm
Mold height on upper table	max. 150 mm
Material width	max. 754 mm
Index length	max. 556 mm
Part height above material level	max. 120 mm
Part height below material level	max. 40 mm
Forming pressure	max. 3 bar
Cycle speed with process optimization	max. 40 1/min.

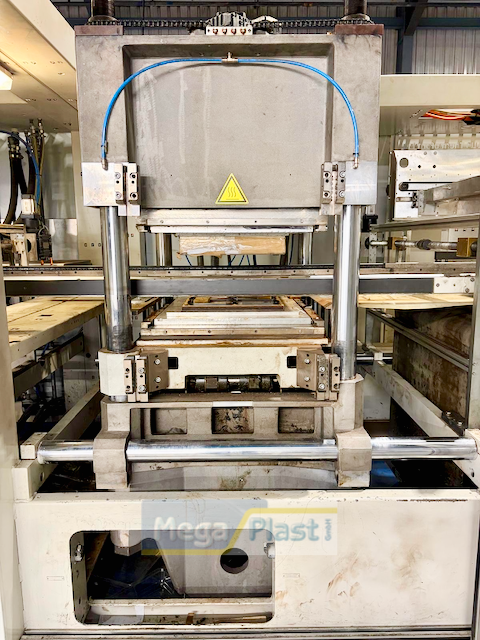

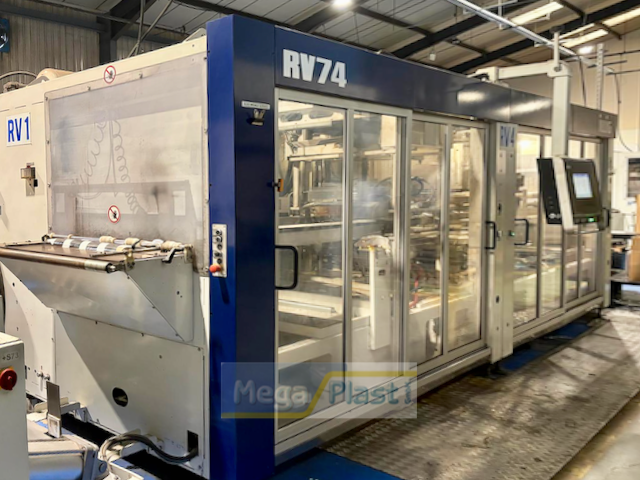

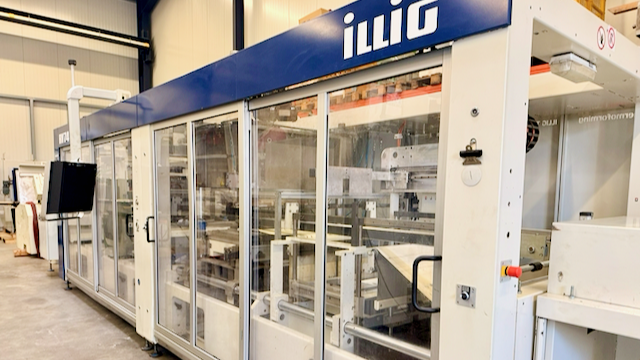

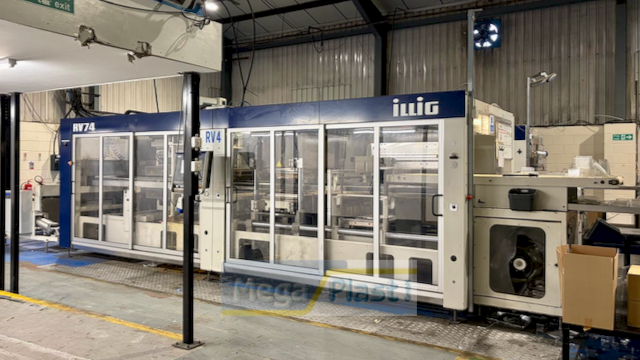

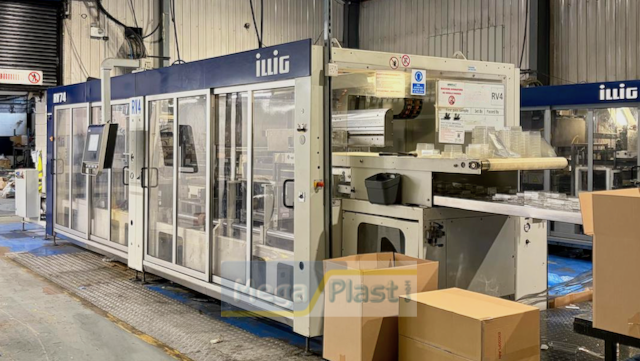

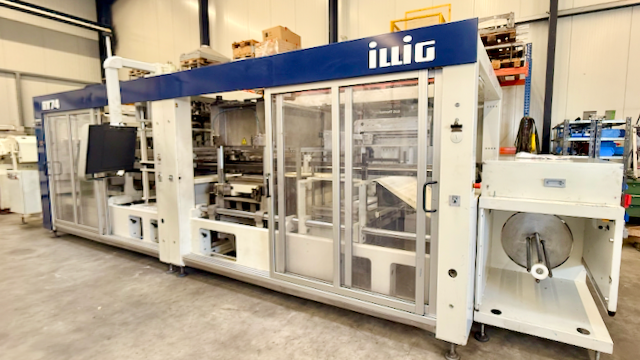

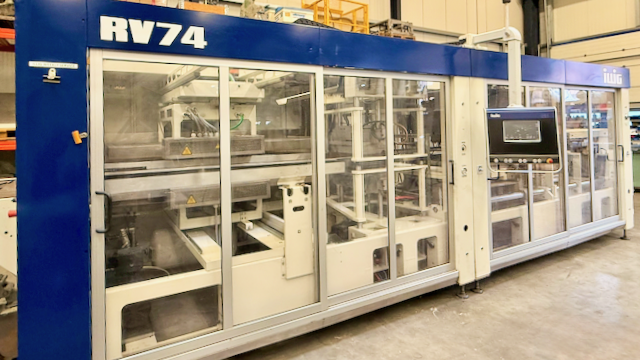

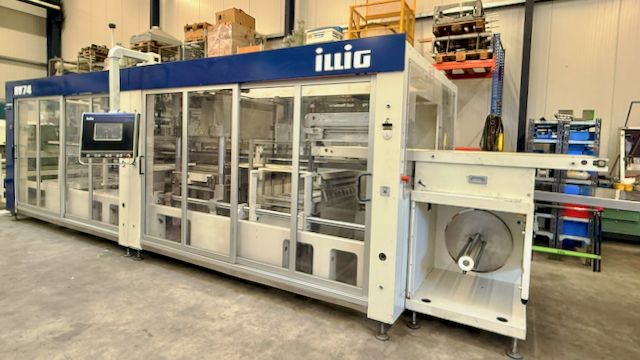

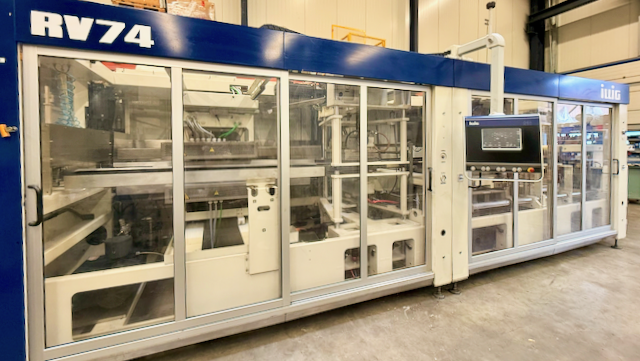

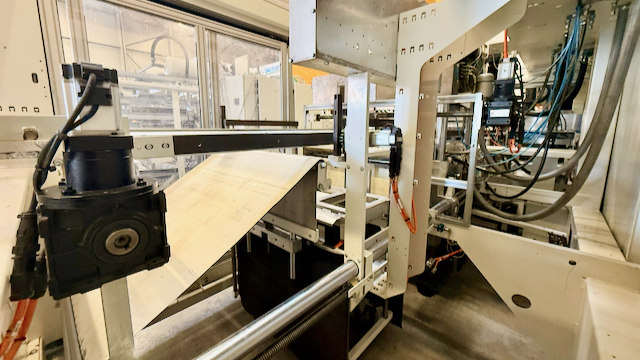

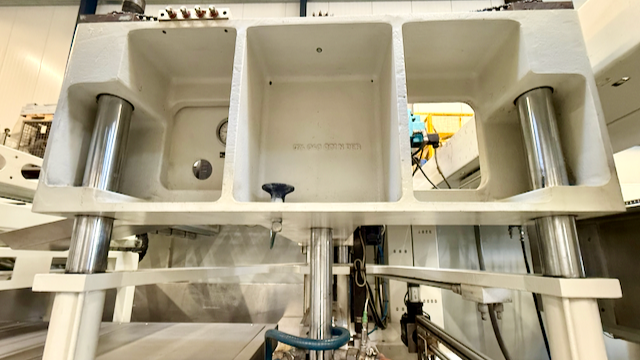

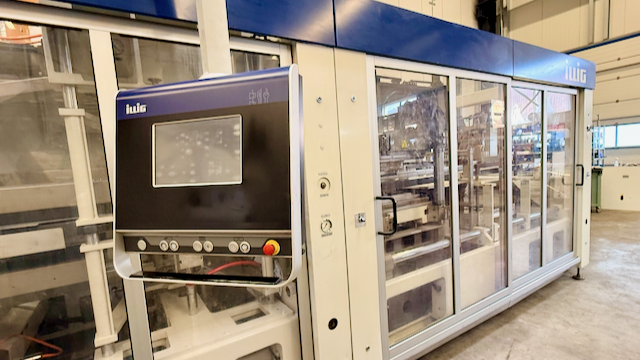

Machine in dry cycle condition in our workshop in Verl

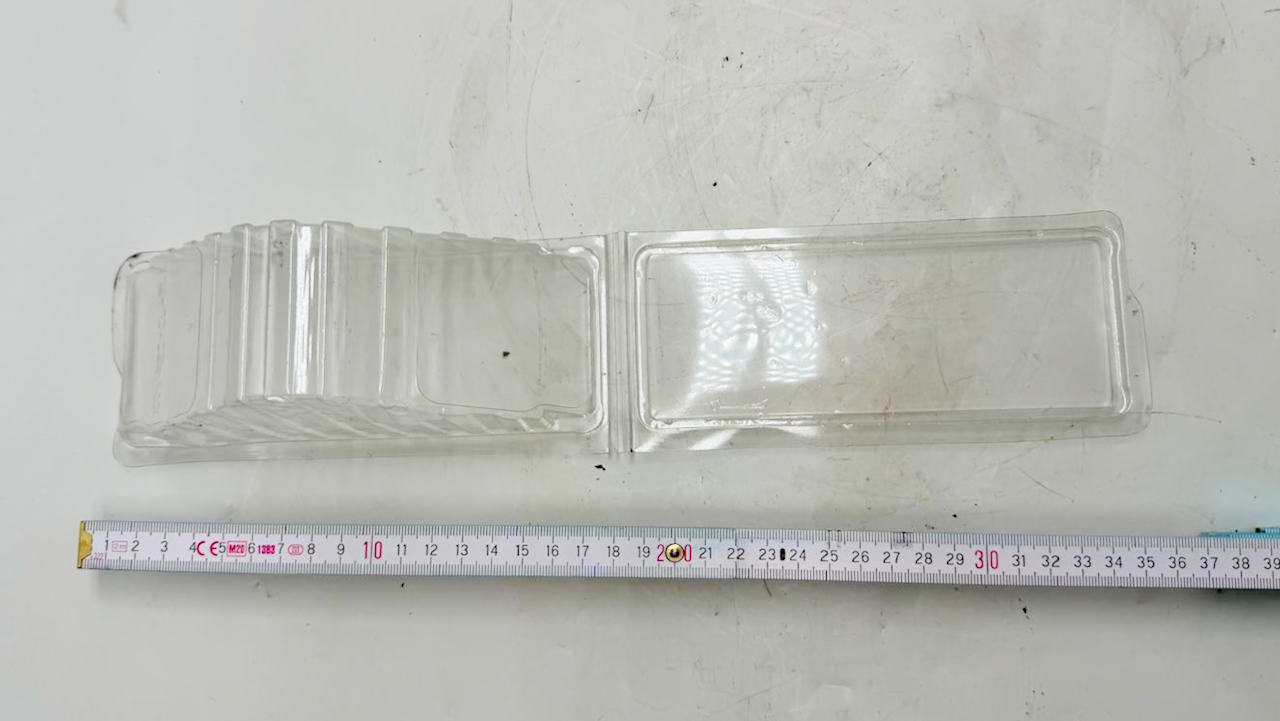

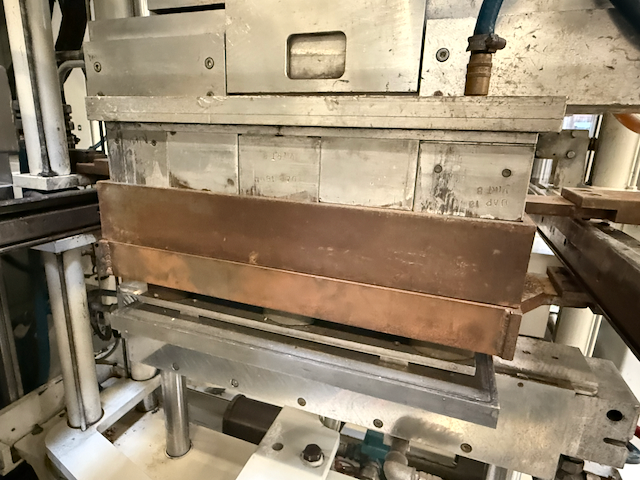

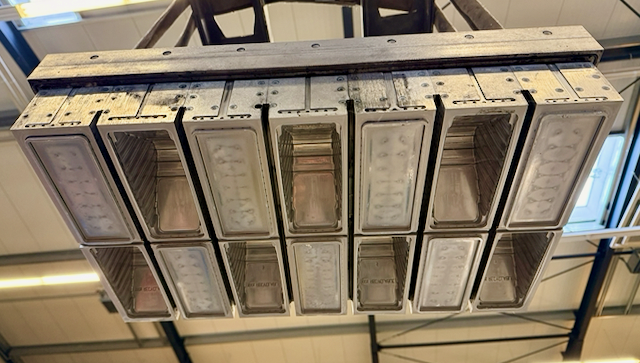

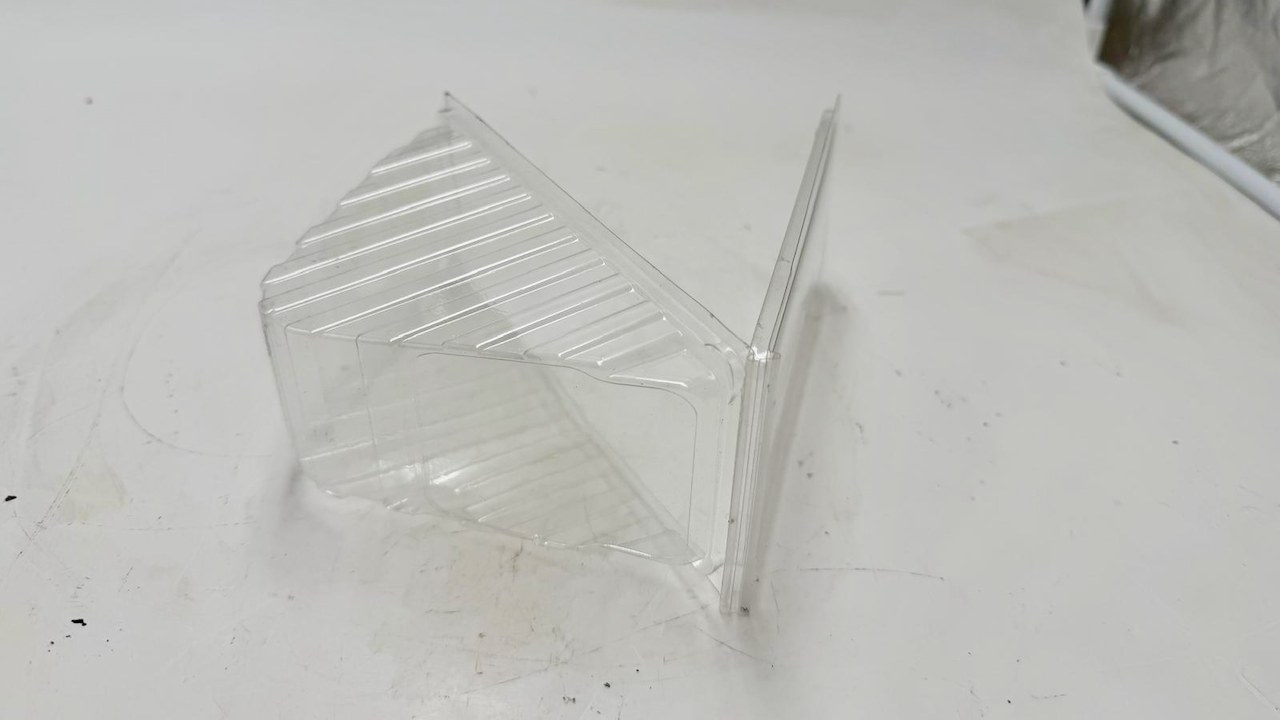

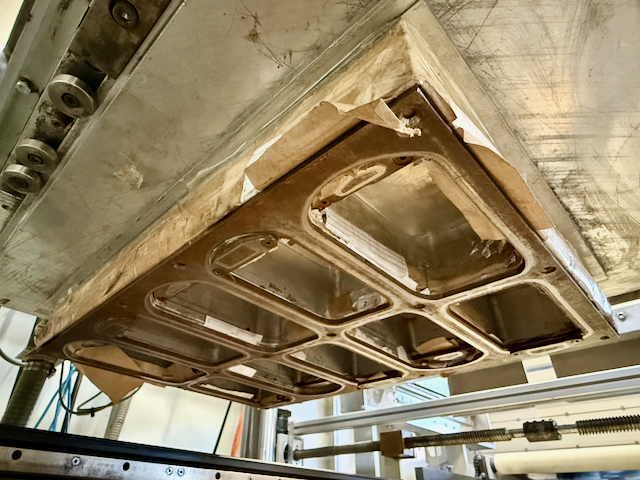

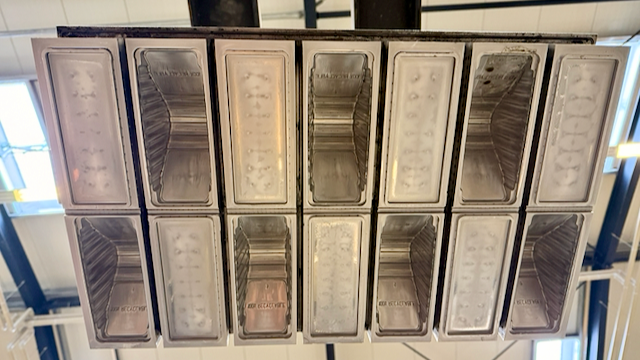

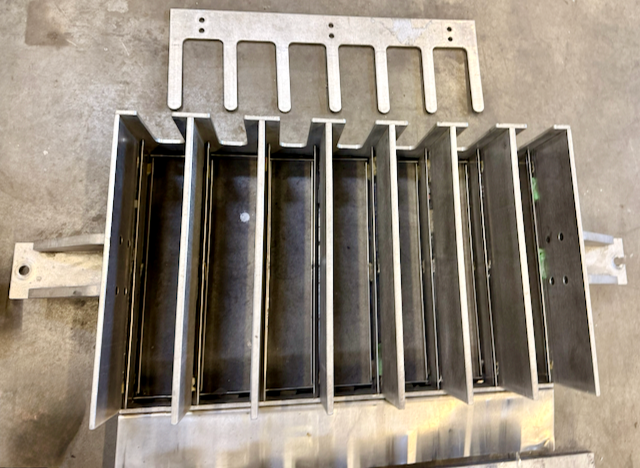

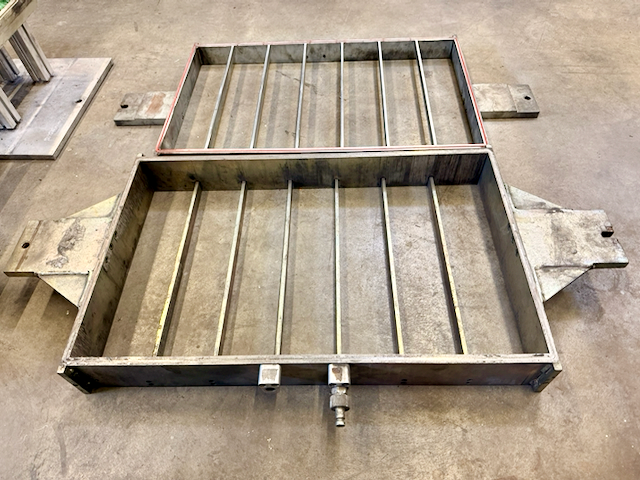

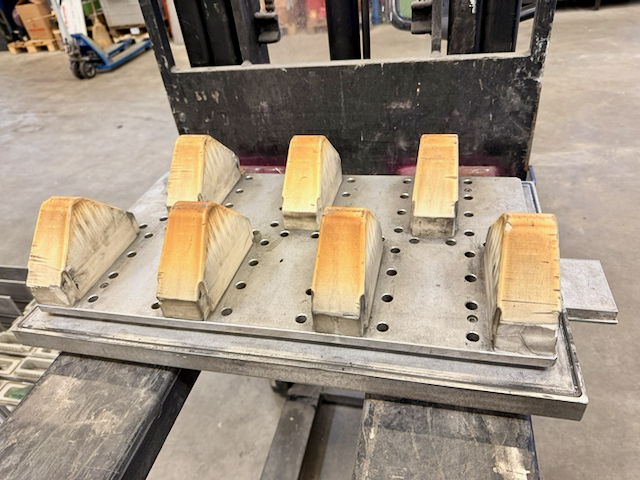

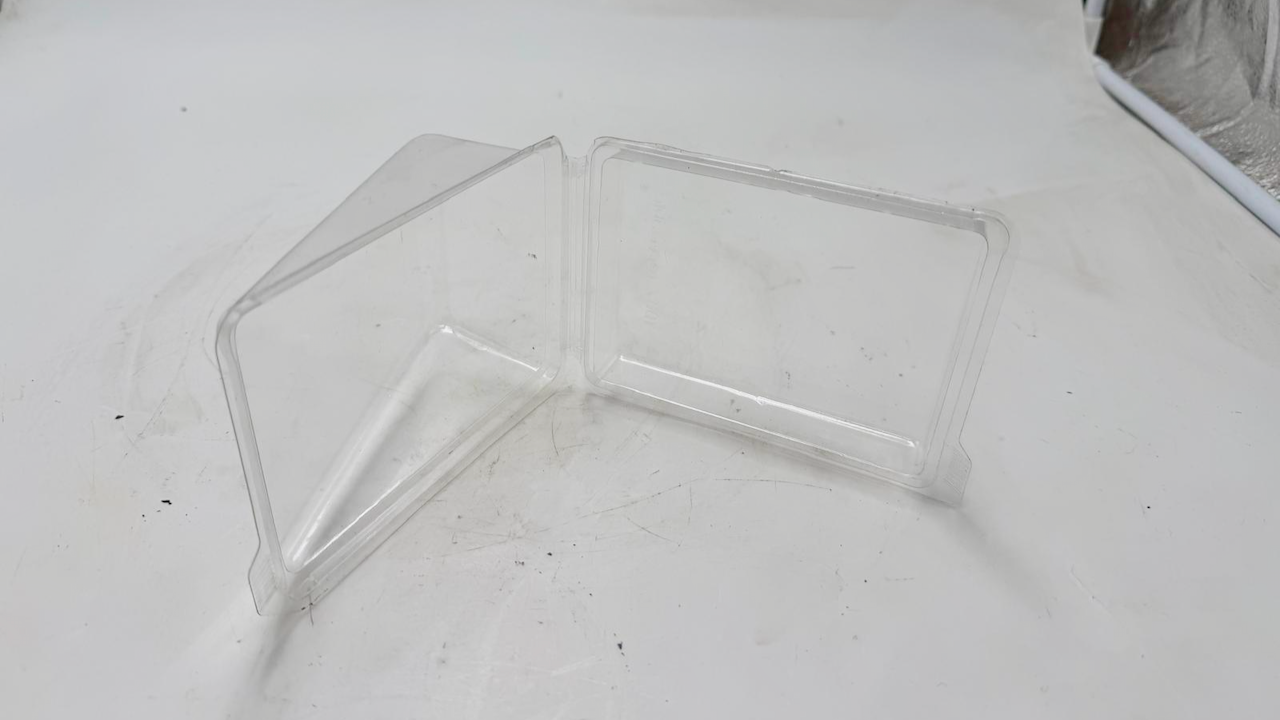

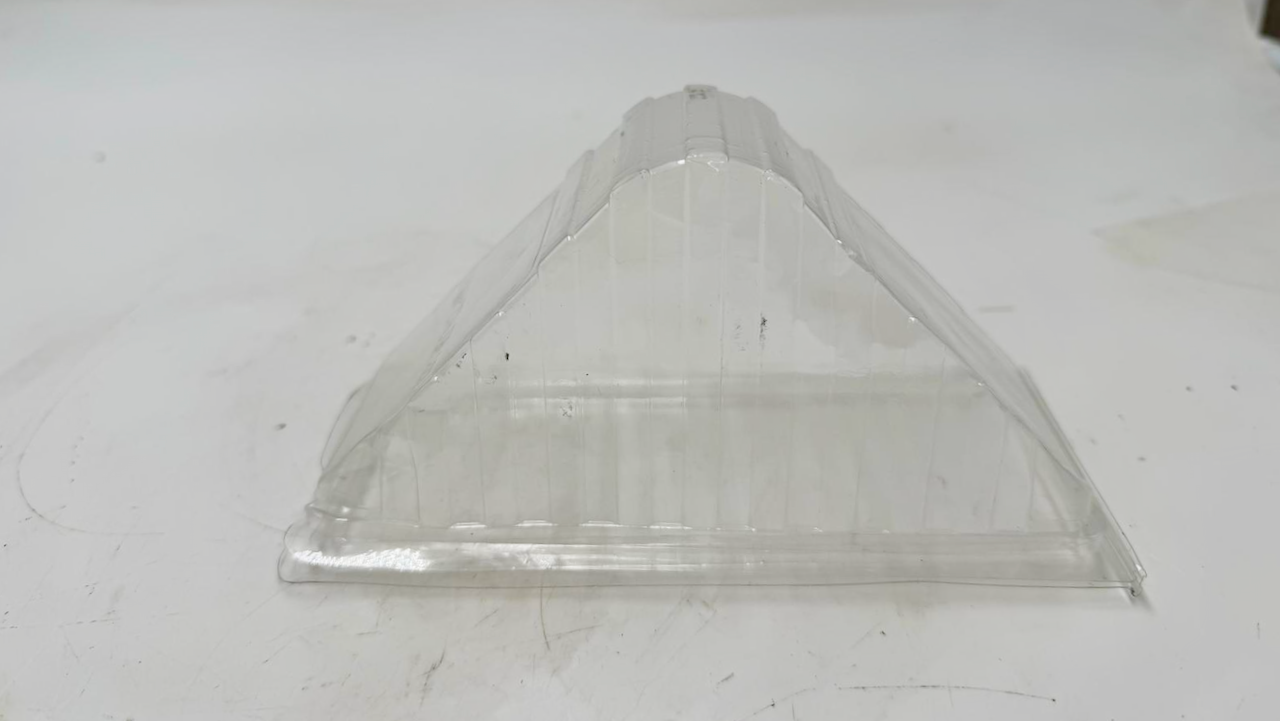

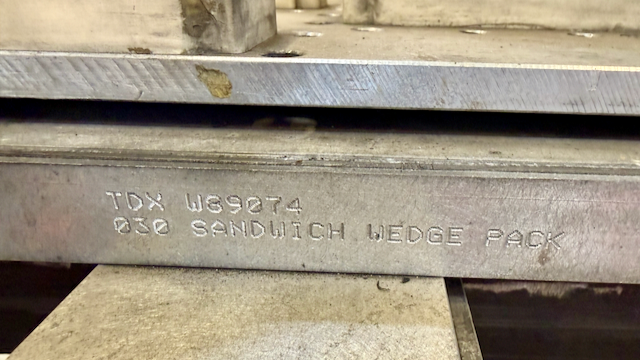

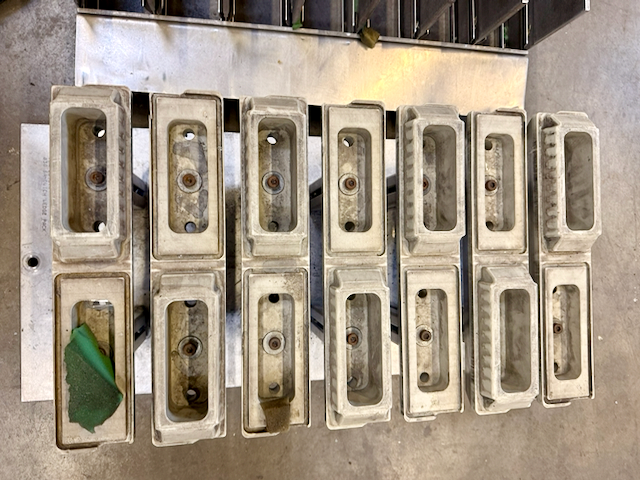

Available two molds. See picture

Video of the machine on following Link:
