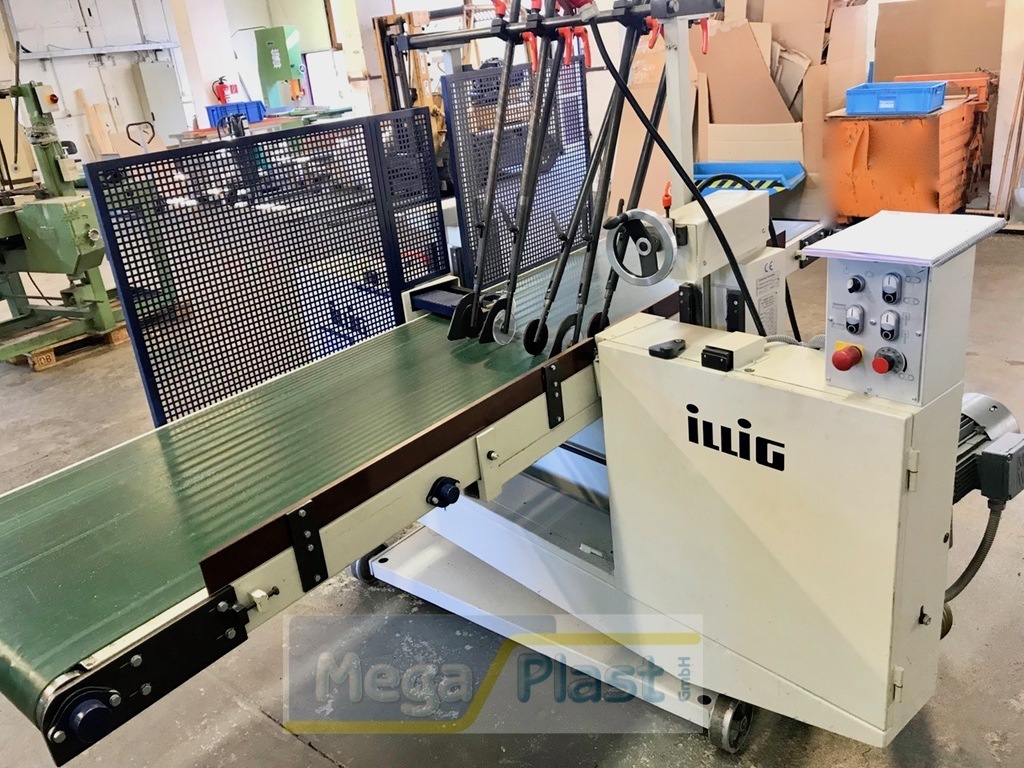

ILLIG TR 650

Technical details

saw width max.                               mm 650
passage height max.                        mm 400
separating height max.                    mm 130
separating height min.                     mm 5
length (suction) conveyor standard   mm 1360

electrical consumption:                   3/PE, 50 Hz, 400 V, TN

drive power saw blade                     kW 1.5
total connected load max.                kW 1.22
total length, with conveyor standard mm 2720
total width with suction unit             mm 2600
total height                                    mm 2010
weight band saw with chip suction   kg 580
standard colour                              RAL 9002

‍
