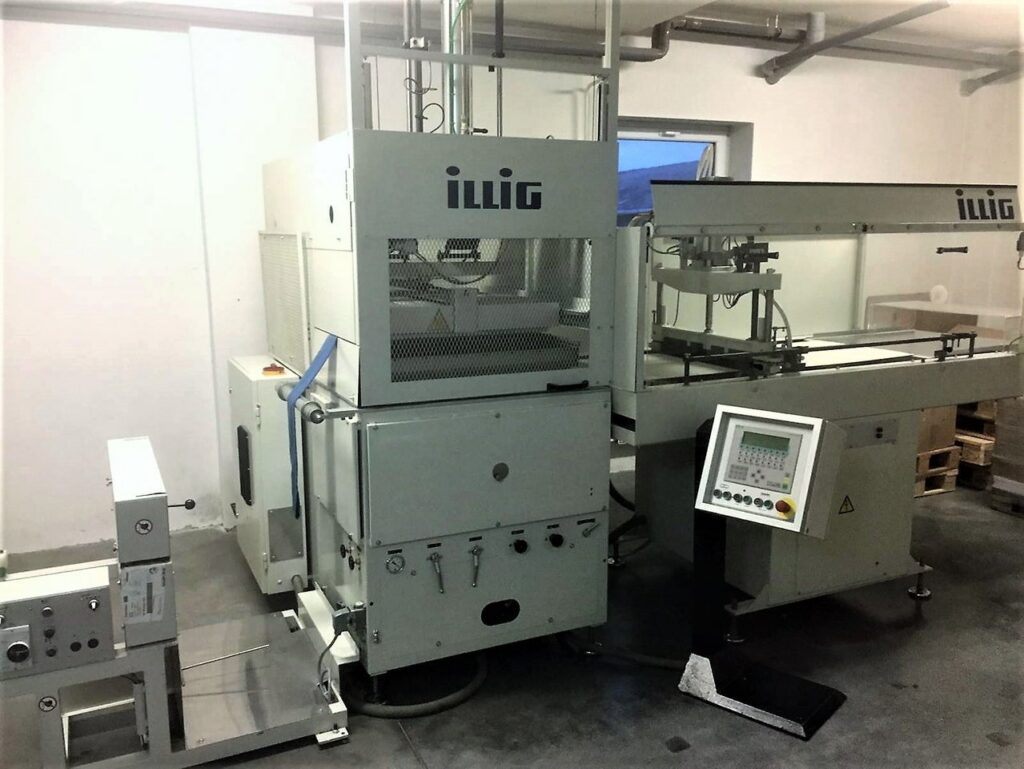

ILLIG VF 74

The VF 74 vacuum former is suitable for roll-processing and for the production of compact formats for further processing on high-frequency lines.
Sophisticated parts can be produced using automatic pre-blowing by pneumatic pre-stretching of the material.
Increase in cycle speed and improvement of product quality are achieved by employing reinforced radiation heating and double cooling performance of the blowers.

Die VF is equipped with a max. forming area of 505 x 775 mm. Parts of up to 150 mm can be produced.

Material width

max. 540mm

Forming area

max. 505 x 775 mm

Material thickness

max. 0.8 mm

Depth of draw positive

max. 150 mm

Working level 1250 mm

‍
