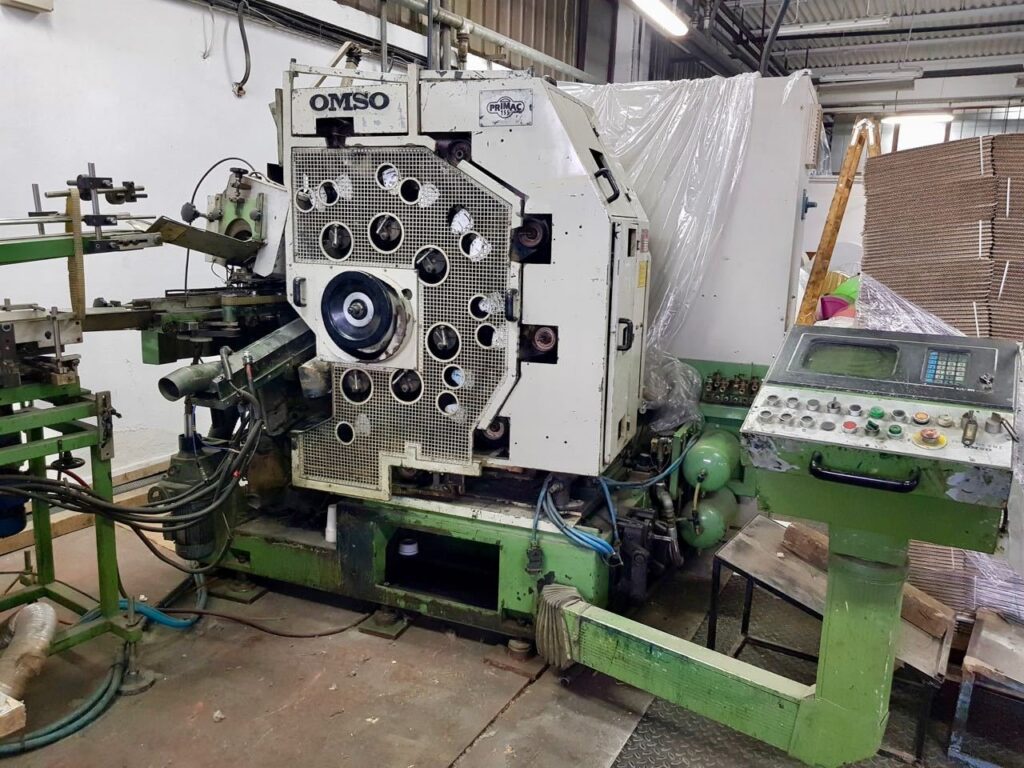

Omso DM 155 Primac Dry Offset round Cup Printing machine

Technical details

Max. Printing width (mm)140Max. Printing length (mm)395Max. Cup diameter (mm)130Max. Cup heigh (mm)150Taper (°)3-13Total connected load (KVA)48Air Pressure (bar)6-10  Weight (kg.)6000

6 x Color Heads, fountain Roll with individual Variable Speed Motors
Applied Curing Tech UV On Mandrel Curing System

Max. Hourly Production Rate (Dependant on Cup Variants) 24,000 / hour

Product

• Round Cup

No. of Colour Heads6Product Dimensions

Max. Cup diameter        mm        130
Min. Cup diameter         mm        50
Max. Cup height             mm        150
Min. Becherhöhe            mm        35

Max. Speed26.000 Cups per hour
