The main groups that make up the extrusion and thermoforming line plant are:

• Mixing and dosing group from Engiplast DXMI
• Main and Co-Extruder with OMV, Siemens Drives, Maag Screen Changer and melt pump
• Flex Lip Die 1400 mm

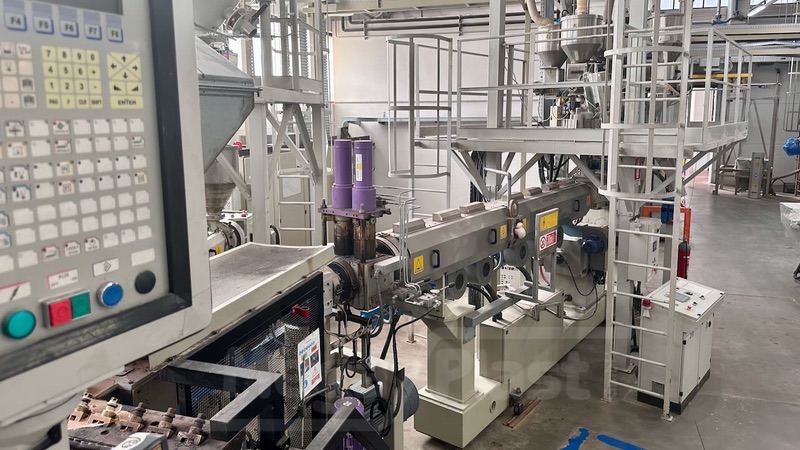

• Thermoforming machine with Calander from WM Type INTEC 1000/2E
• STS Packaging unit
• CMG Web-Grinder

TECHNICAL CHARACTERISTICS OF EXTRUDERS
Main Extruder mm 120-35 D
Co-extruder mm 50-30 D
Useful sheet width mm 1260
Sheet thickness mm 0,2 – 2,5
Productive capacity kg/h 800

TECHNICAL CHARACTERISTICS FORMING MACHINE
Max. mould dimensions mm 1010 x 800
Sheet width mm 650 – 1050
Max. thickness of the sheet mm 0,2 – 2
Stroke of the lower plate mm 210
Tool closing force kg 35.000
Max. empty cycles cycles/1’ 35

TECHNICAL CHARACTERISTICS MILL
Rotary blades N° 3 x 4
Blade dimensions mm 385
Counter-blades N° 8
Blade Dimensions Blades mm 388
Rotor diameter mm 240
Feed speed m/1’ 10 – 30
Productive capacity kg/h 450 – 500
