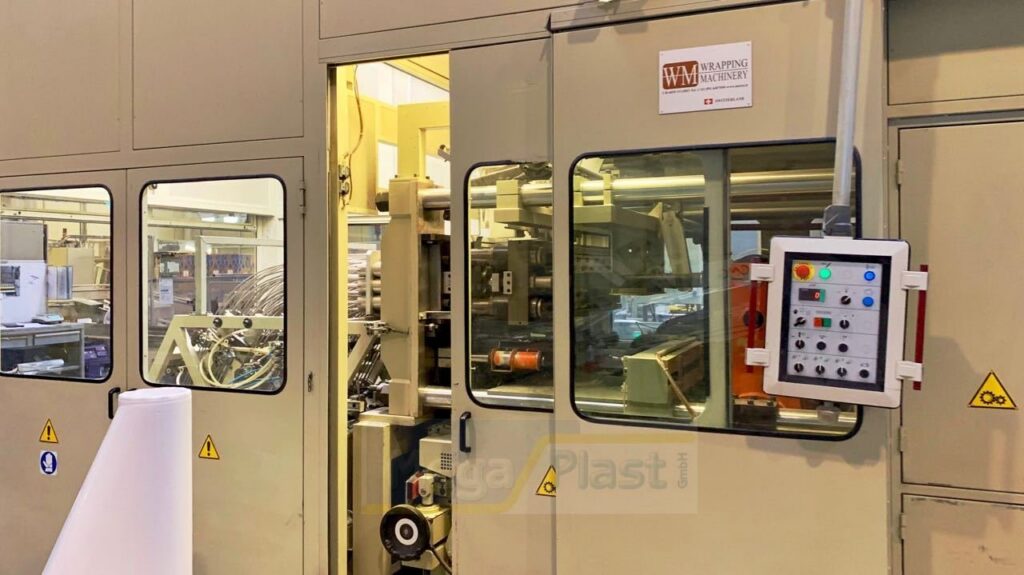

WM (TFT) INTEC 1100

The main groups that make up the extrusion and thermoforming line plant are:

• Mixing and dosing group.
• Extrusion unit.
• Thermoforming unit.
• Cutting machine group
• Translation unit.
• Edge group.
• Packaging group.
• Cardboard group.

TECHNICAL CHARACTERISTICS OF EXTRUDERS
Main Extruder mm 120-35 D
Co-extruder mm 50-30 D
Useful sheet width mm 1060
Sheet thickness mm 0,2 – 0,5
Productive capacity kg/h 800

TECHNICAL CHARACTERISTICS TFT 100 FORMING MACHINE
Max. mould dimensions mm 1010 x 800
Sheet width mm 650 – 1050
Max. thickness of the sheet mm 0,2 – 2
Stroke of the lower plate mm 210
Tool closing force kg 35.000
Max. empty cycles cycles/1’ 35

CUTTING (Trimming) PRESS P.T. 103
Plan opening mm 1150 x 360
Adjustable stroke mm 80 – 300
Max. height of container mm 152
Speed variation cycles/1’ 20 – 120
Plane closing power kg 20.000

TECHNICAL CHARACTERISTICS MILL
Rotary blades N° 3 x 4
Blade dimensions mm 385
Counter-blades N° 8
Blade Dimensions Blades mm 388
Rotor diameter mm 240
Feed speed m/1’ 10 – 30
Productive capacity kg/h 450 – 500

‍
