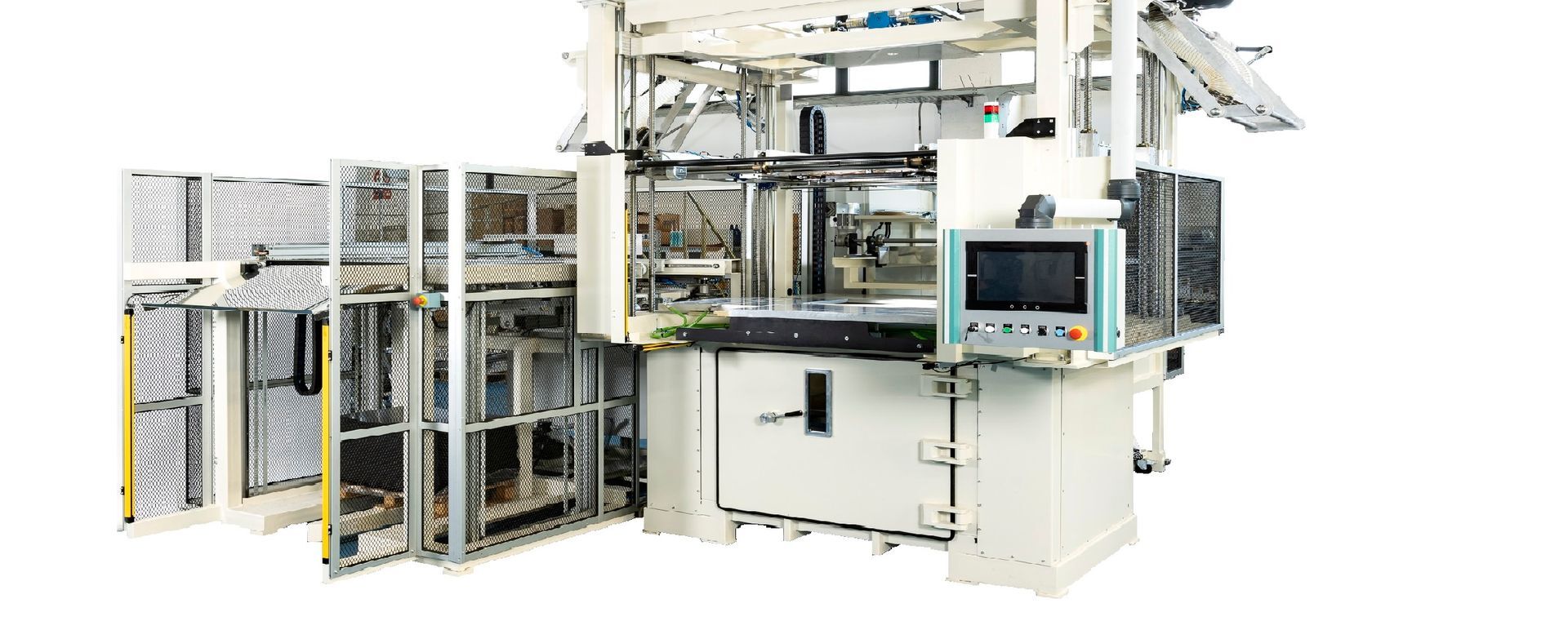

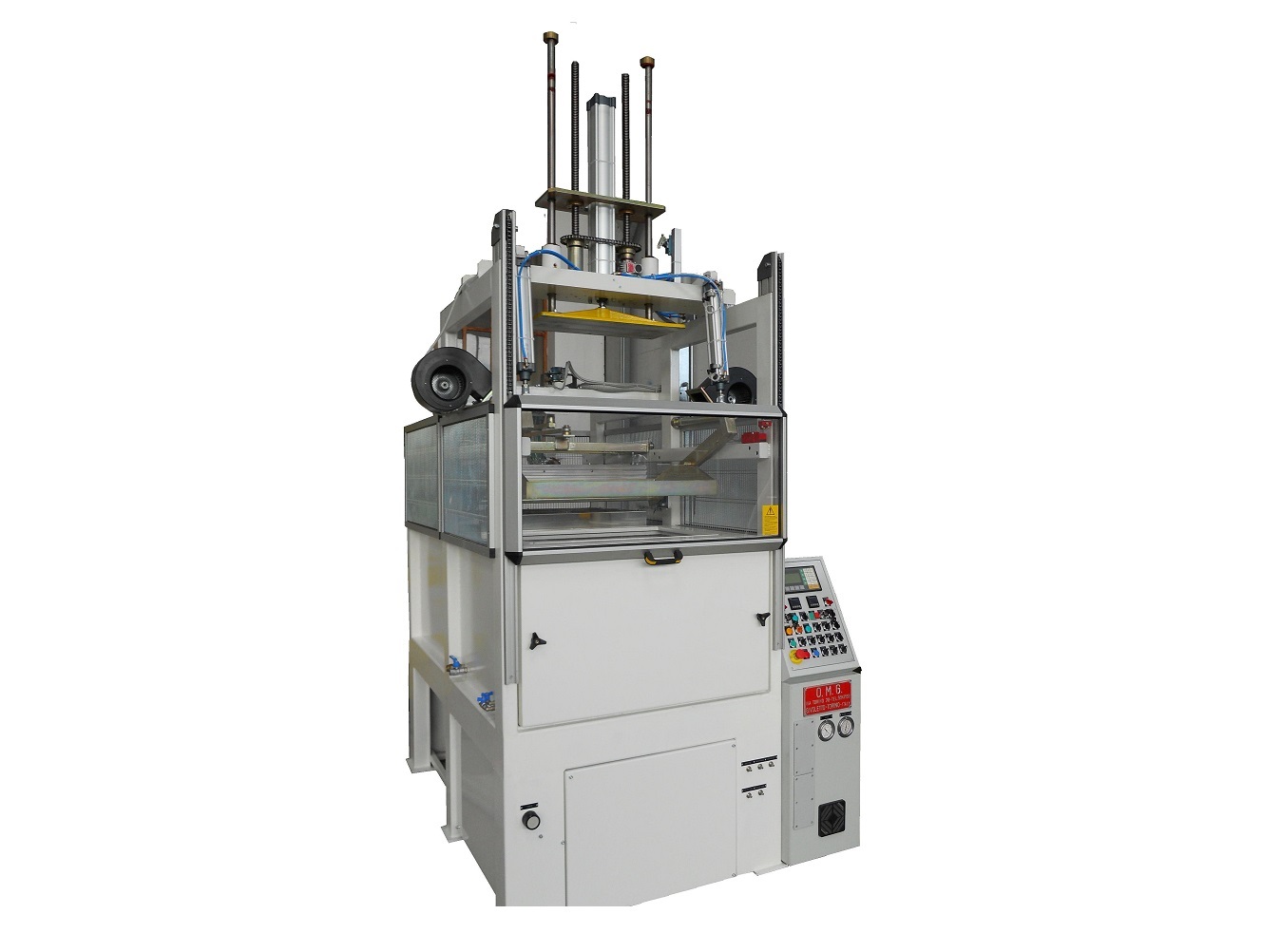

Semiautomatic and Automatic machines for sheet (Heavy Gauge) ASV series

This model of vacuum thermoforming machine is ideal for the production of thermoformed items starting from thermoplastic sheets. The machine can be supplied with manual or automatic sheet loading/unloading. It can also be supplied with preheating ovens. The movements can be implemented pneumatically, hydraulically, or with servomotors.

‍Configuration:

• Loading and Unloading device
• Pre-heater
• Thermoforming unit
• Blow Box and Mould table
• Clamping frames
• Heating panels
• Plug Assist and Cooling system
• Control system

The advantages

• Electrical configuration model with servomotors: greater reliability, high productivity, constant speed, higher thermoformed, quality, adjustable depth mould.
• Fast tool locks.
• Possibility of motorized reduction of the working frame.
• Automatic sheet loader directly from pallets.
• Different heating configurations also for Energy Saving.
• High thicknesses.
• Fast setup.
• Low maintenance.

The futures

• Manual or automatic loading by means of a special device of the sheet from the store or directly from the pallet at the customer's choice.
• Manual or automatic unloading of the thermoformed part by means of device and transport outside the machine.
• Heating with single or double ceramic panel or energy saving with single regulation of the resistances / zones.
• Pyrometers both for sheet temperature control and for fan cooling control.
• Tool table moved pneumatically, hydraulically or by servomotor.
• Sheet clamping operated pneumatically, hydraulically or by servomotor.
• Plug assist moved pneumatically, hydraulically or by servomotor.
• Servo controlled valves on request for vacuum, demoulding, pre-blowing, material floating air available.
• Material cooling with fans with the possibility of using water spray (available) to speed up cooling.
• Cycle management through an industrial interactive screen which makes it easier for the operator to adjust and memorize the working parameters.
• Telediagnostics via Internet: thanks to the possibility of directly communicating with the system at a distance, O.M.G. technicians always at the customer's side in managing the system.

‍
