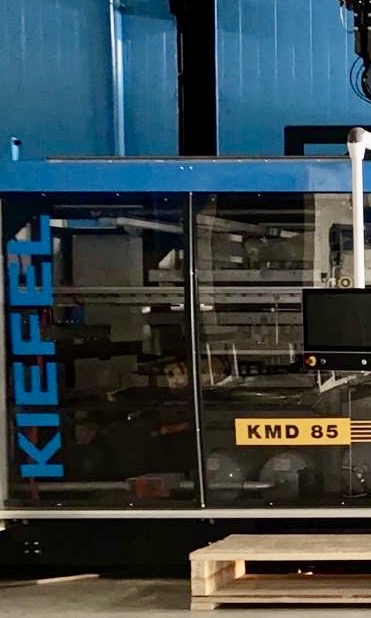

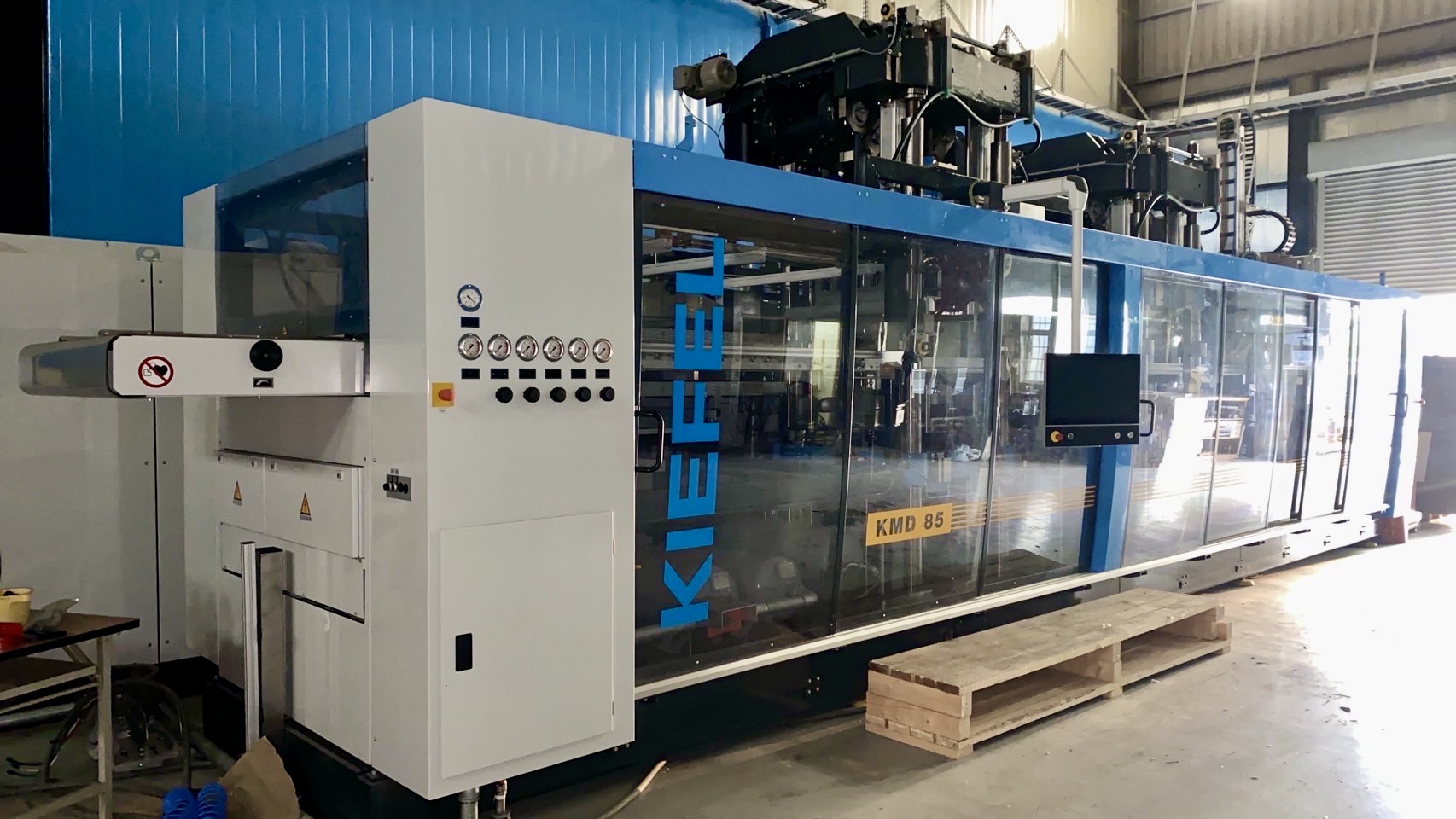

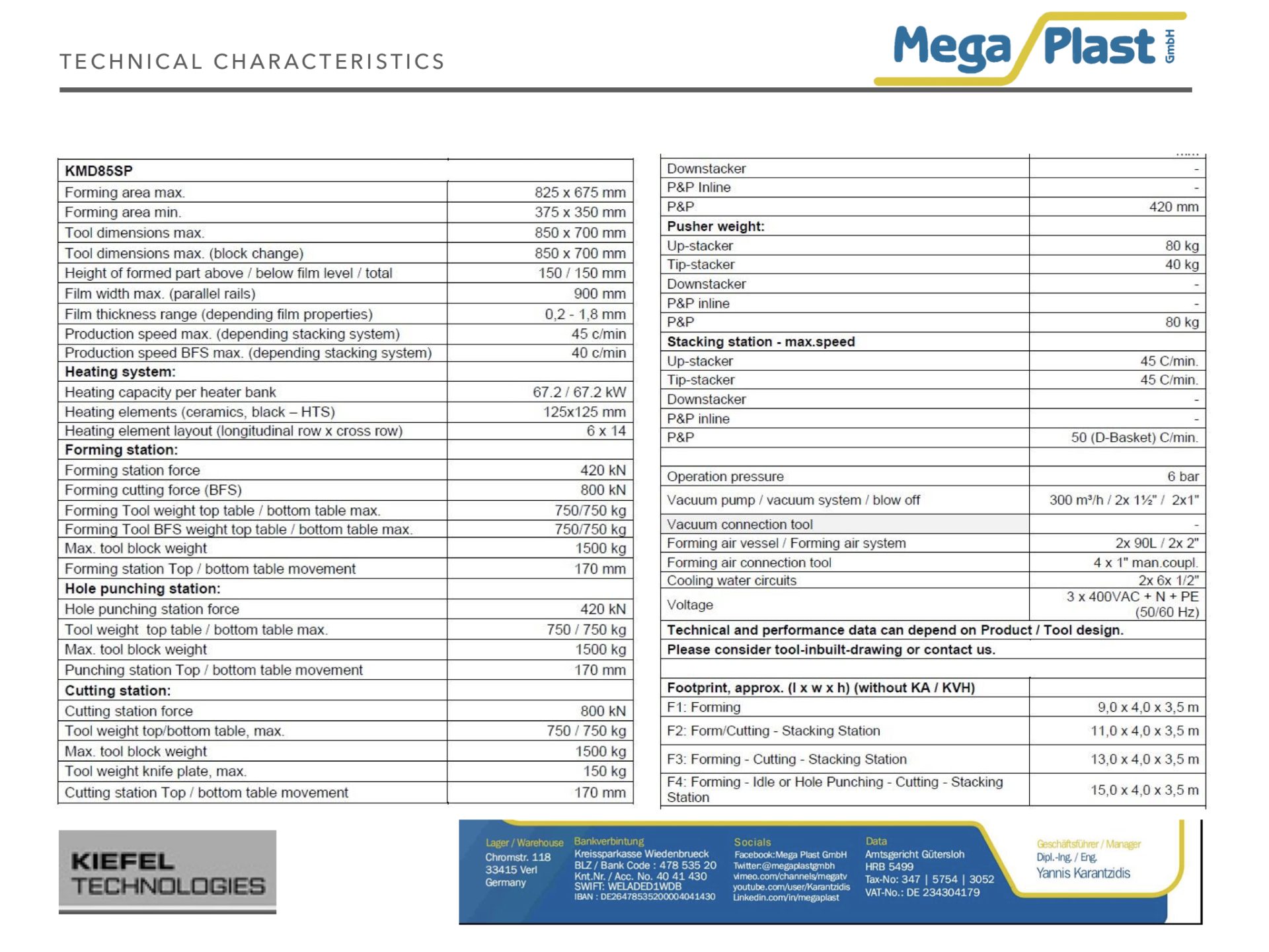

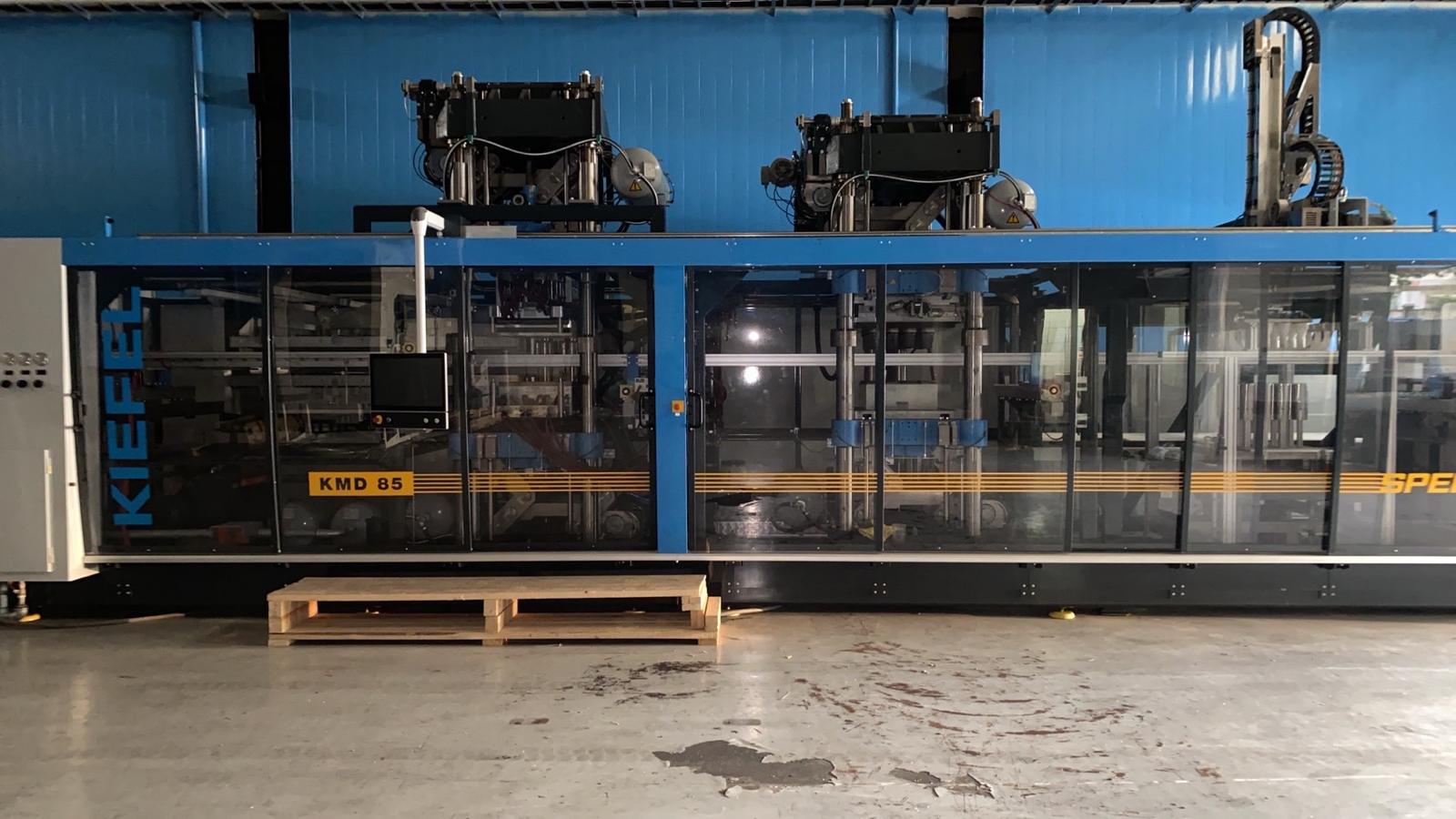

Description
FORMING STATION CAN BE USED AS FORMING/CUTTING STATION
Forming Area
- Max. forming area: 825 × 675 mm
- Min. forming area: 375 × 350 mm
- Max. tool dimensions: 850 × 700 mm
- Tool dimensions max. (block change): 850 × 700 mm
- Height of formed part above / below film level / total: 150 / 150 mm
- Max. film width (parallel rails): 900 mm
- Film thickness range (depending on film properties): 0.2 – 1.8 mm
- Max. production speed (depending on stacking system): 45 cycles/min
- Max. production speed BFS (depending on stacking system): 40 cycles/min

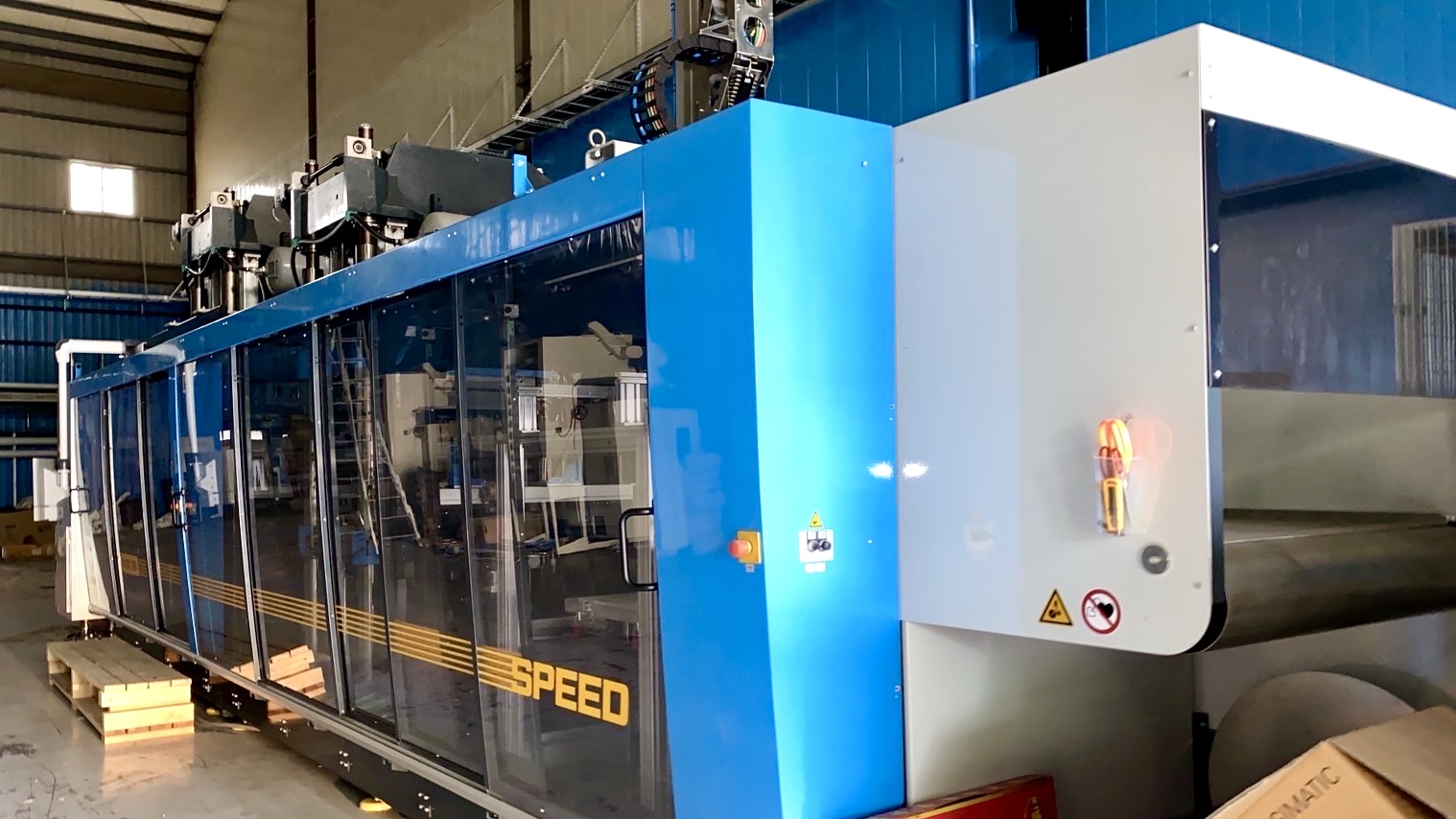

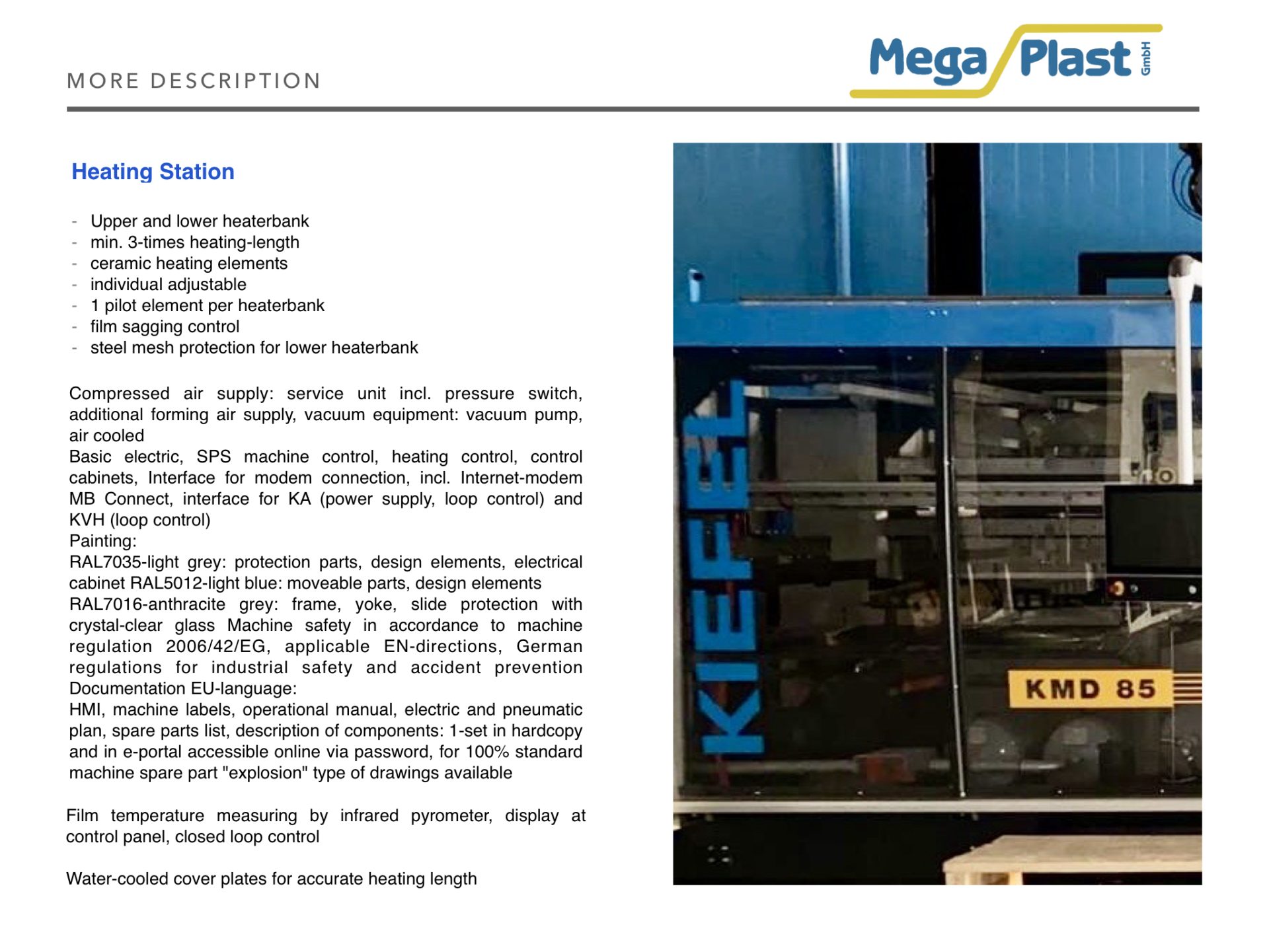

Heating System
- Heating capacity per heater bank: 67.2 / 67.2 kW
- Heating elements (ceramics, black – HTS): 125 × 125 mm
- Heating element layout (longitudinal row × cross row): 6 × 14

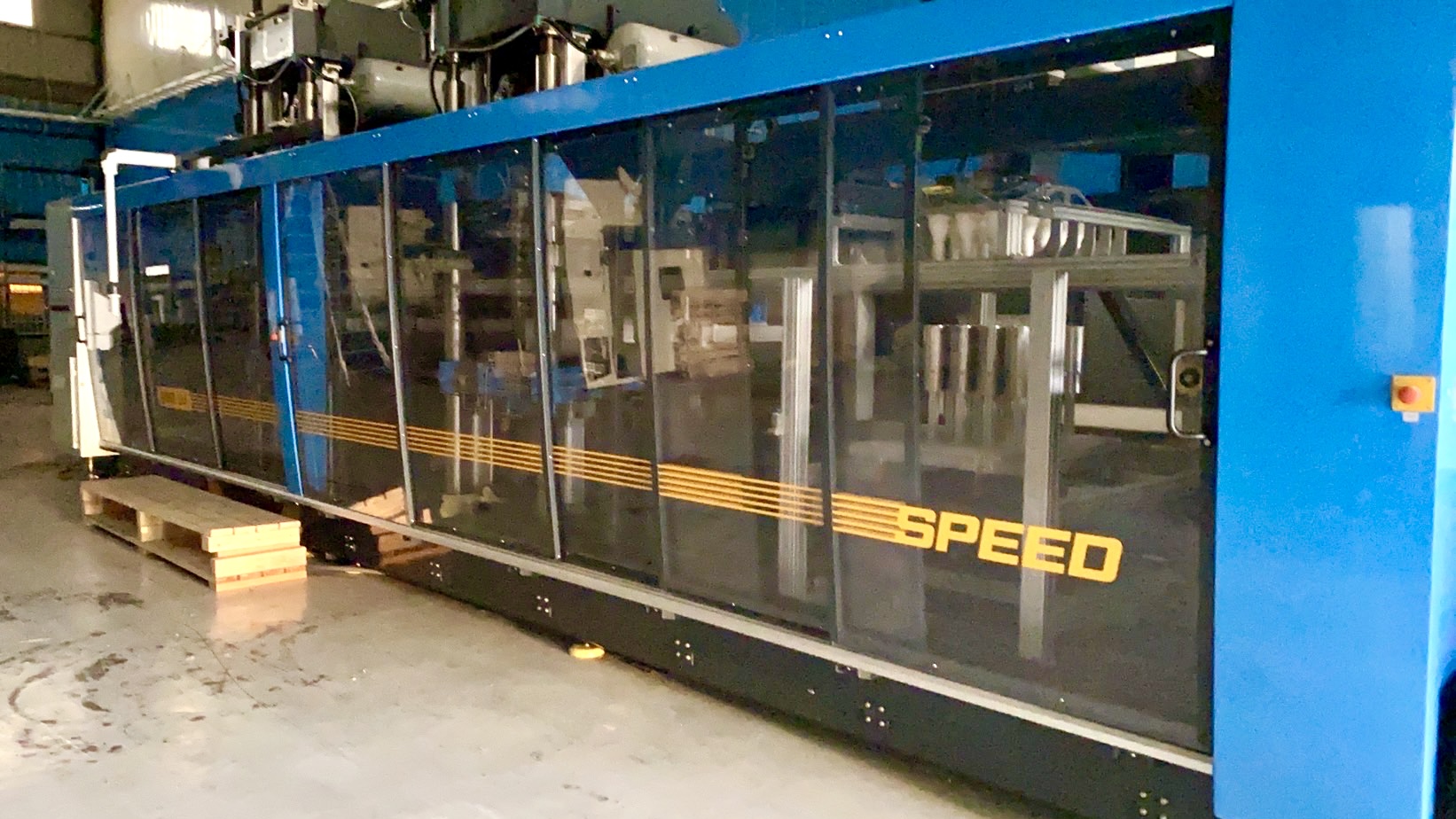

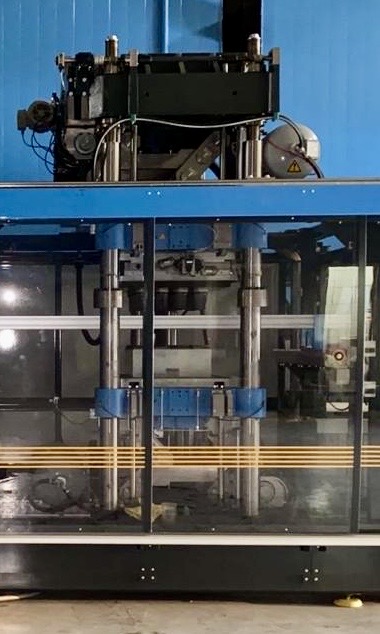

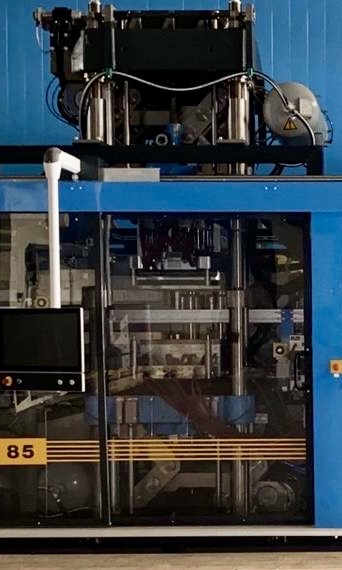

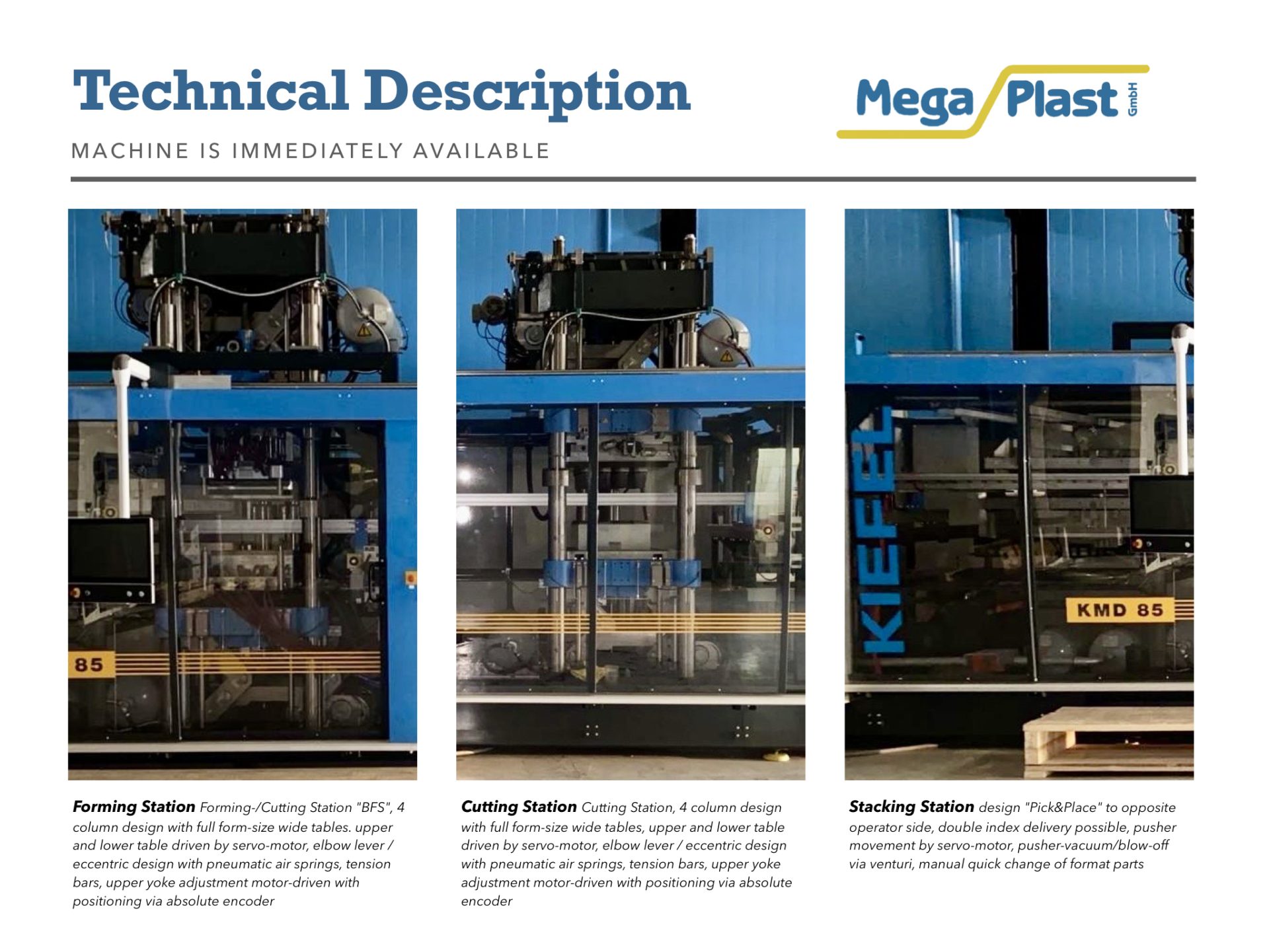

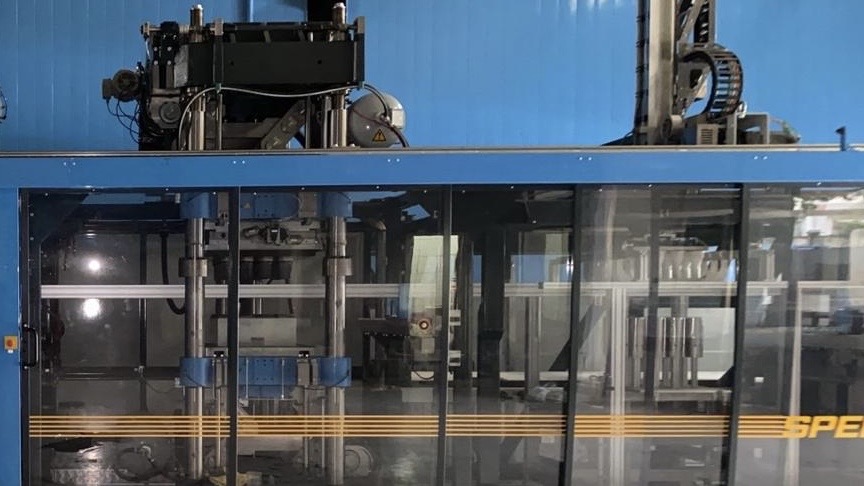

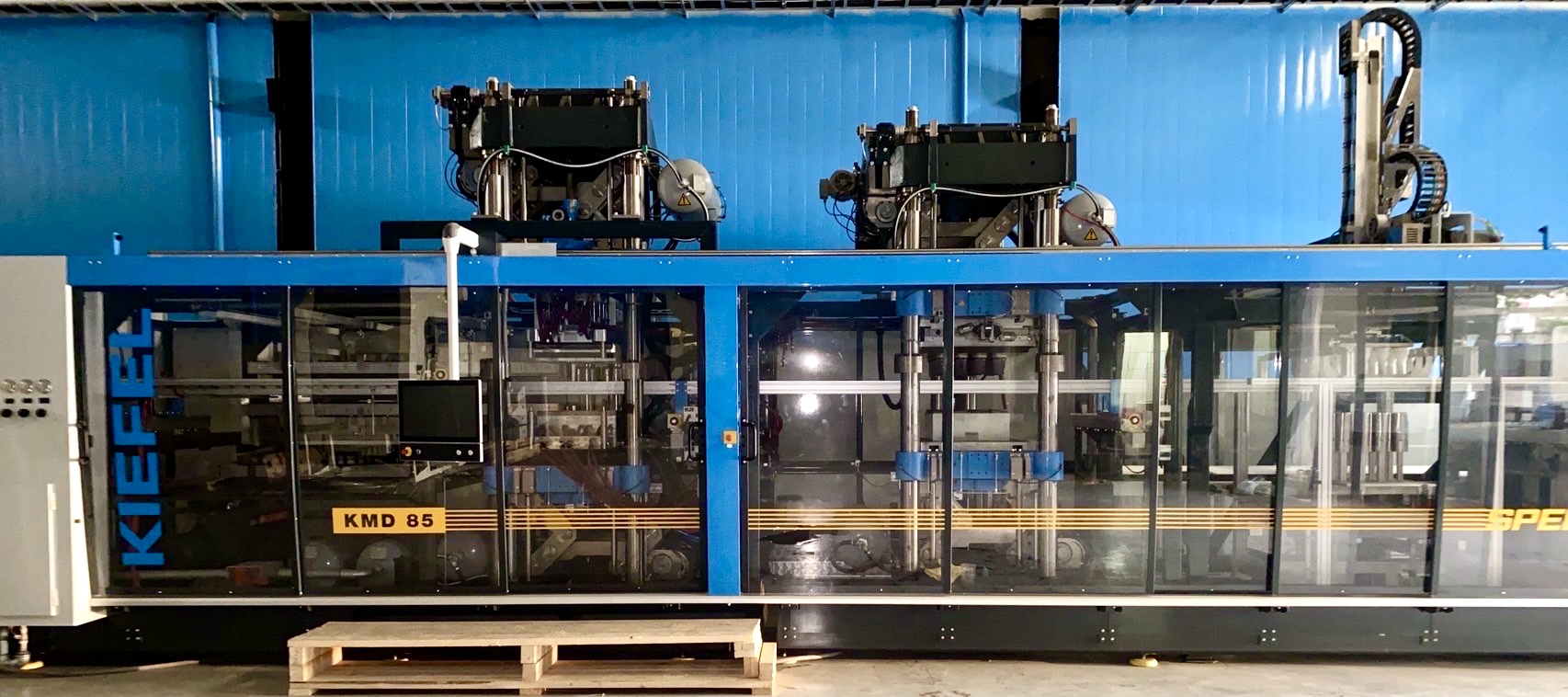

Forming Station
- Forming station force: 420 kN
- Forming cutting force (BFS): 800 kN
- Max. tool weight top/bottom table: 750 / 750 kg
- Max. tool BFS weight top/bottom table: 750 / 750 kg
- Max. tool block weight: 1500 kg
- Top/bottom table movement: 170 mm
Hole Punching Station
- Hole punching station force: 420 kN
- Max. tool weight top/bottom table: 750 / 750 kg
- Max. tool block weight: 1500 kg
- Top/bottom table movement: 170 mm

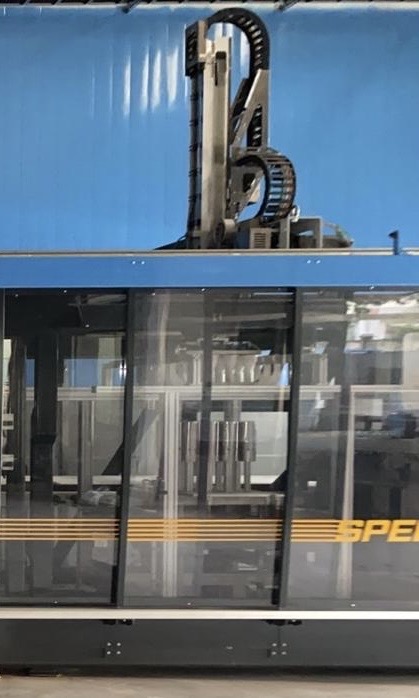

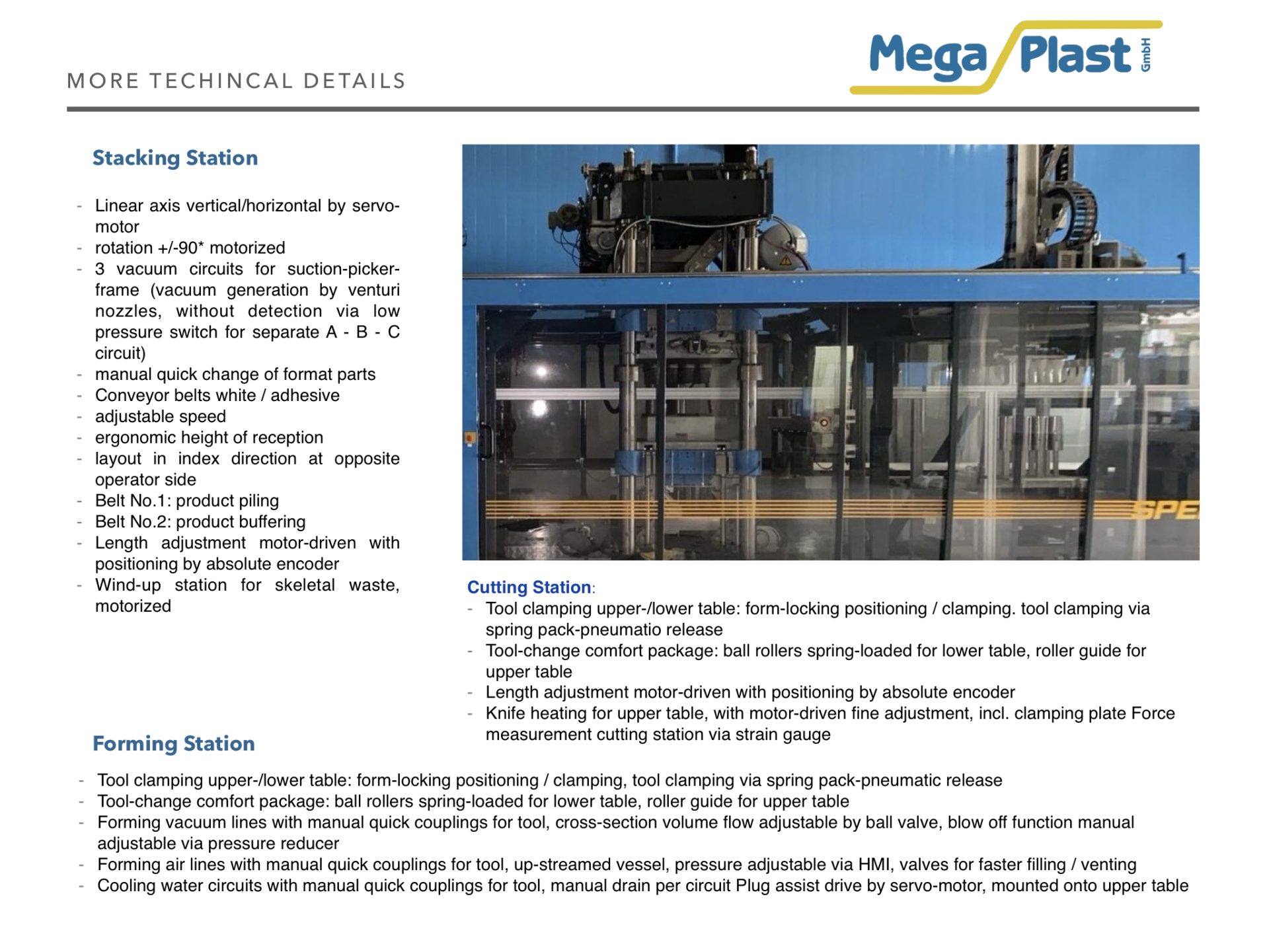

Cutting Station
- Cutting station force: 800 kN
- Max. tool weight top/bottom table: 750 / 750 kg
- Max. tool block weight: 1500 kg
- Max. tool weight knife plate: 150 kg
- Top/bottom table movement: 170 mm
- Downstacker: –
- P&P Inline: –
- P&P: 420 mm
Pusher Weight
- Up-stacker: 80 kg
- Tip-stacker: 40 kg
- Downstacker: –
- P&P Inline: –
- P&P: 80 kg
Stacking station – Max. Speed
- Up-stacker: 45 cycles/min
- Tip-stacker: 45 cycles/min
- Downstacker: –
- P&P Inline: –
- P&P: 50 (D-Basket)
Vacuum System
- Operation pressure: 6 bar
- Vacuum pump: 300 m³/h / 2× 1½” / 2× 1″
- Vacuum connection tool: –
- Forming air vessel: 2× 90L / 2× 2″
- Forming air connection tool: 4 × 1″ max. coupling
- Cooling water circuits: 2 × 6 × 1/2″

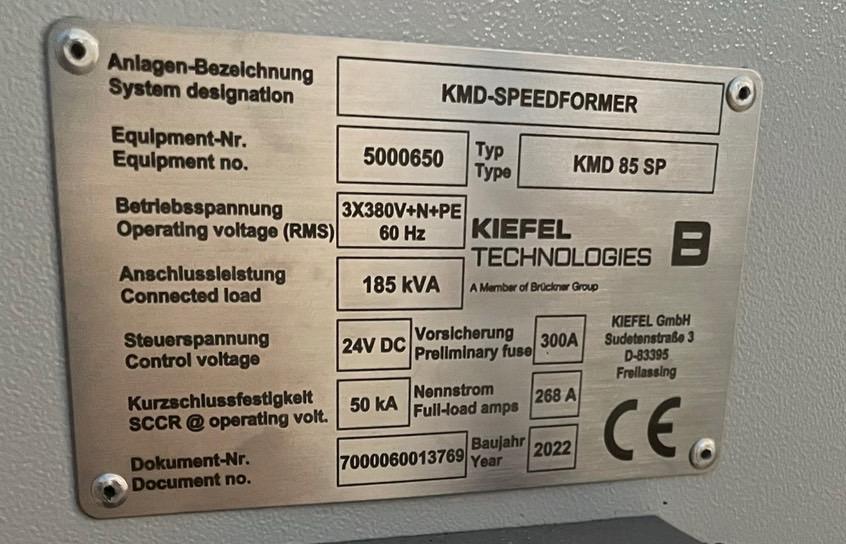

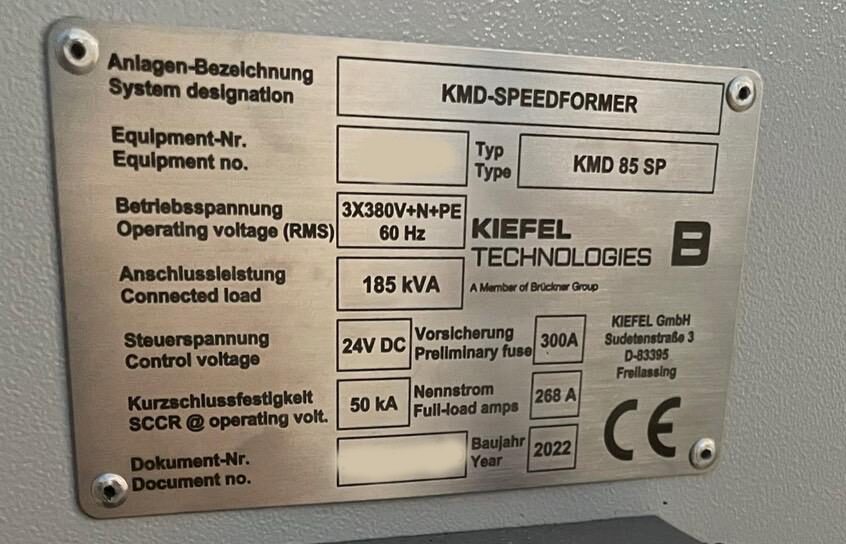

Electrical Data
- Voltage: 3 × 400V AC + N + PE (50/60 Hz)
