Bandera/David Std./Diamat | Extruder | Plattenformmaschinen

Bandera/Davis Std./ Diamat Co-extruder PET

Name: Bandera/Davis Std./ Diamat Co-extruder PET
Brand: Bandera/David Std./Diamat
SKU: 21174
Availability: InStock

Jahr: 2015-02

Verfügbar

Technische Details

Ref. No21174

BrandBandera/David Std./Diamat

UnterkategoriePlattenformmaschinen

ConditionSehr guter Zustand

Hours-

DeliverySofort lieferbar

The main groups that make up the extrusion line plant are:

Main Extruder Davis-Standard Model: 130MM 45H, Serial-No. AG463, DC Motor: 223,6 kW, Manuf.-Date 05-2002
Co-Extruder Davis-Standard Model: 25IN25, Serial: AH056, Manuf. Date 06-2002, DC Motor: 44,7 KW
7 Heating zones New Set of Heating spares
Kreyenborg Screen Changer, Type : K-SWE-160 RS Year. 2001 Ser.No. 19258/3
MAAG, Melt Pump, Extrex 90-5, Year:07/2006
Flex Lip Die 1450 mm Width
3x Roll Chromed Polish Calander Battenfeld-Gloenco, Year: 1995, Rolls Width 1300 mm and Rolls diameter 550 mm
Diamat DA LAM, PE Lamination, Year 2015, Min. 20 my Max. 100 my
Electronic System Capacitive measurement, Scanner type Reflex WIX, year 2015
Weko Silikon Unit C-40M Web-Flow
OSC- Camera Type WK583_1 P4-CM-04K10D 50mm/1.8 System FSP600 for quality control
Diamat Take-off Unit with double Rubber Roller as well with Edge and Central Cutter with Roll knifes.
TRIA Edge Cutting Mill Model XT-K, Type: 42-20, Year 2014

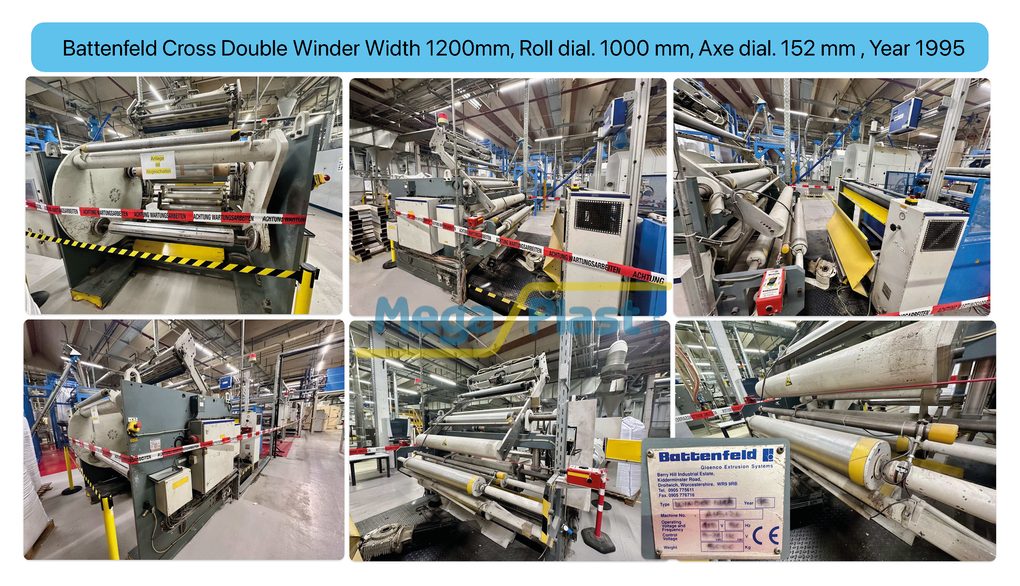

Battenfeld Winder 144/B Year 1995. Cross Double Winder Roll width 1200 mm, Diam. 1000mm Axe 152 mm

‍
