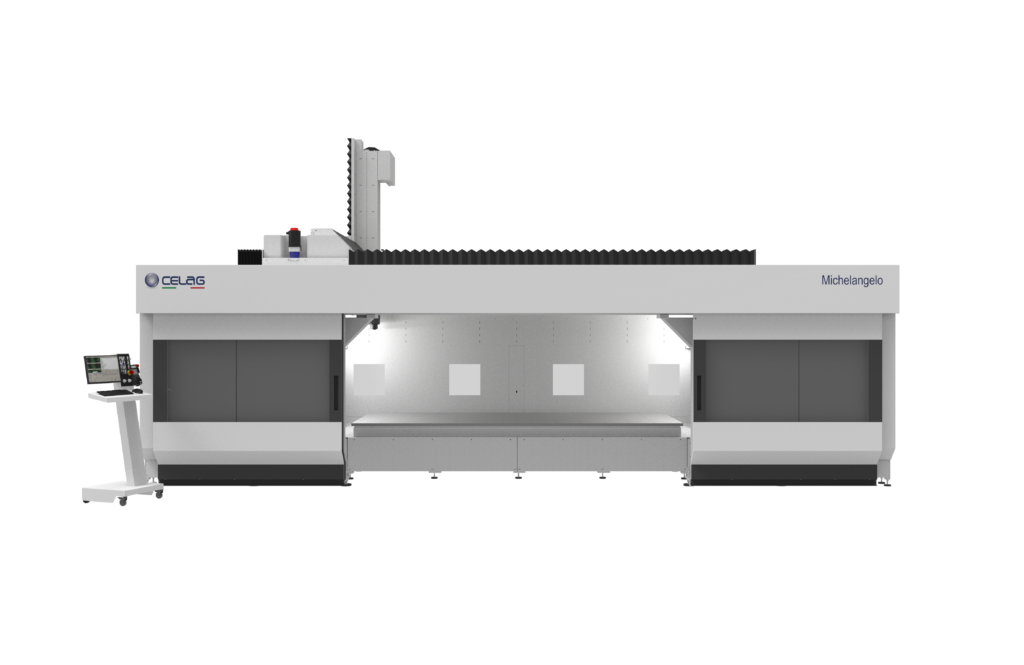

CELAG Michelangelo HL

MICHELANGELO HL is a 5-axis gantry-type machining centre with
moving beam designed for high-speed machining of composite
materials and light alloys.
Thanks to its features, the HL is the ideal choice for trimming composite
materials, high-speed milling of wood, resins, light alloys and aluminium.

‍

TECHNICAL DATA FT:

ELECTRO-SPINDLES – Power 11/13 kW , Power 15/18 kW , Power 22/25 kW

AXIS RANGE – X = 4000/5000/6000 , Y = 1800/2600mm , Z = 1.200mm , A = ± 120 ° , C = ± 360 °

RAPID – X-Y-Z = 80 m/min , B/C = 75 °/sec

TOOL STATION – 8 position travelling linear tool station , 16 position travelling linear tool station , 24 position travelling linear tool station , 16 position rotating carousel
