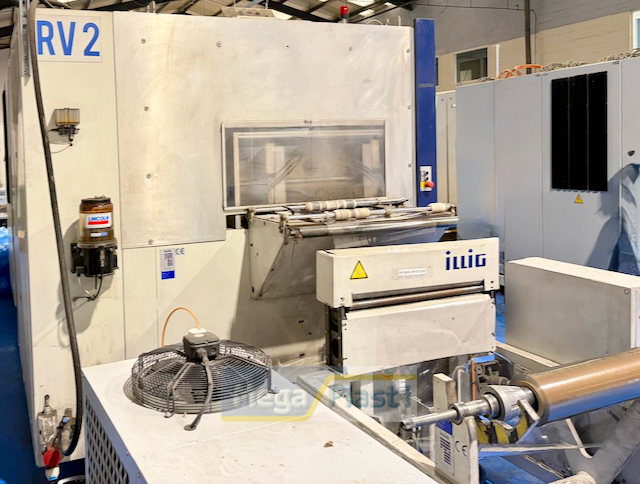

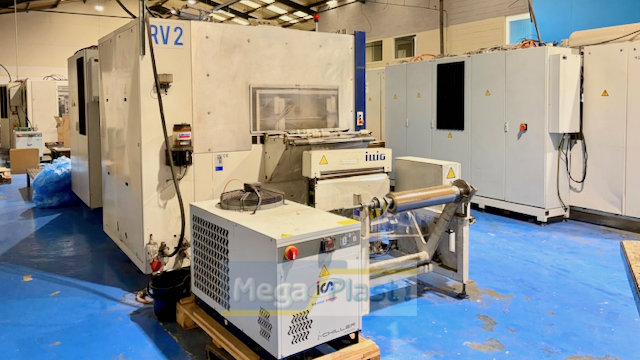

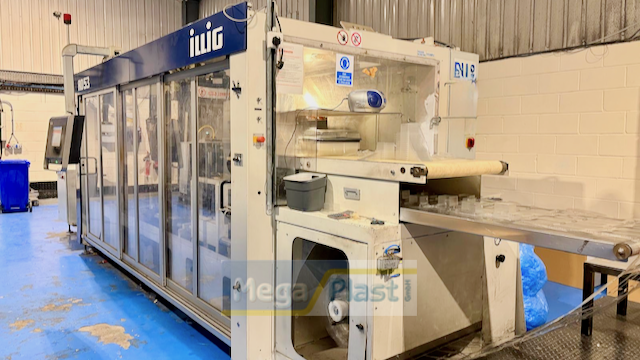

ILLIG RD 53D, Year 2016

Name: ILLIG RD 53D, Year 2016
Brand: ILLIG
SKU: M-15366
Availability: InStock

Jahr: 2016

Verkauft

Technische Details

Ref. NoM-15366

BrandILLIG

UnterkategorieRollenautomaten getrennt formend und stanzend

ConditionEinwandfreier Zustand

Hours24884

DeliveryAb Sofort

Automatic pressure forming machine

Technical specifications

Forming area max. 500 x 365 mm

Mold width between material transport max. 524 mm

Mold length in feed direction max. 390 mm

Mold height on upper table max. 130 mm

Mold height on lower table max. 75 mm

Material width max. 550 mm

Index length max. 395 mm

Part height above material level max. 100 mm

Part height below material level max. 40 mm

Forming pressure max. 3 bar

Cycle speed with process optimization max. 45 1/min.

Machine in working order.
